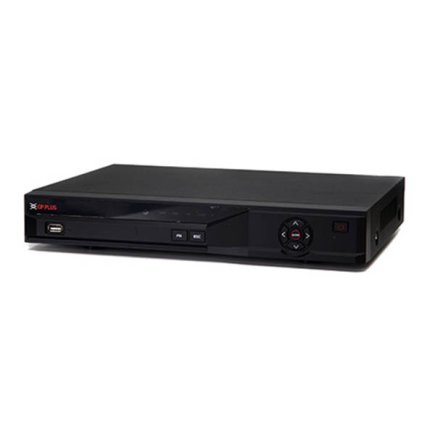

| Model | CP-UVR-1601L1B-4KH |
| Device Type | 16 Channel 4K H265 Cosmic HD DVR |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Channels | 16 Channels BNC |
| IP Camera Support | 16 Plus 8 Channels Up To 8MP Per Channel |
| Video Standard | PAL And NTSC |
| Video Output | 1 HDMI 1 VGA |
| HDMI Resolution | 3840 × 2160 2560 × 1440 1920 × 1080 1280 × 1024 1280 × 720 |
| VGA Resolution | 1920 × 1080 1280 × 1024 1280 × 720 |
| Video Recording | Up To 4K At 7 FPS 6MP At 10 FPS 5MP At 12 FPS 4MP 3MP At 15 FPS 1080P 720P Up To 30 FPS |
| Display Split | 1 4 8 9 16 |
| Audio Input | 1 Channel RCA |
| Audio Output | 1 Channel RCA |
| Two Way Audio | Supported Through RCA Audio In And Out |
| Motion Detection | 396 Detection Zones 22 × 18 |
| Video Loss Detection | Supported |
| Recording Mode | Manual Schedule Continuous Motion Detection Alarm Stop |
| Trigger Events | Recording PTZ Tour Alarm Video Push Email FTP Snapshot Buzzer Screen Tips |
| Search Mode | Time Date Alarm Motion Detection Exact Search |
| Playback Functions | Play Pause Stop Fast Forward Rewind Slow Play Digital Zoom Backup Full Screen Repeat Shuffle |
| Backup | USB Device And Network |
| Hard Disk Support | 1 SATA Port Up To 10 TB |
| Record Interval | 1 To 60 Minutes Pre Record 1 To 30 Seconds Post Record 10 To 300 Seconds |
| Maximum User Accounts | 128 Users |
| Ethernet | 1 RJ45 Gigabit 1000M Port |
| Interface Ports | 1 HDMI 1 VGA 2 USB Ports 1 USB 2.0 1 USB 3.0 1 RS485 |
| Protocols | HTTP HTTPS TCP IP IPv4 IPv6 WiFi 3G 4G UPnP RTSP UDP SMTP NTP DHCP DNS IP Filter PPPoE DDNS FTP Alarm Server P2P IP Search ONVIF CGI |
| Mobile Support | iPhone iPad Android |
| User Interface | Graphical User Interface |
| Power Supply | DC 12V 3A |
| Power Consumption | Less Than 20 Watts Without HDD |
| Operating Temperature | Minus 10 Degree Celsius To Plus 55 Degree Celsius |
| Operating Humidity | 10 To 90 Percent RH |
| Dimensions | 325 × 255 × 55 mm |
| Weight | 1.3 kg Without HDD |

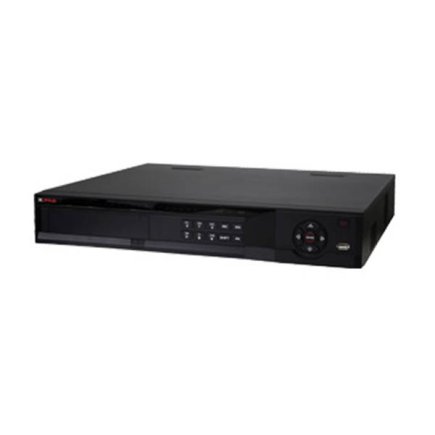

| Model | CP-UVR-1604K4-H |
| Device Type | 16 Channel H265 Cosmic HD DVR |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Channels | 16 Channel BNC |
| IP Camera Support | 16 Plus 8 Channels Up To 8MP Per Channel |
| Video Output | 2 HDMI 1 VGA 1 TV Output |
| Display Resolution | HDMI 1 Up To 3840 × 2160 HDMI 2 And VGA Up To 1920 × 1080 |
| Recording Resolution | 5M N 4M N 1080P 1080N 720P 960H D1 CIF |
| Video Recording | Main Stream Up To 5M N 10 FPS And 4M N 1080P 15 FPS Sub Stream D1 CIF Up To 15 FPS |
| Video Standard | PAL NTSC |
| Video Display Split | Dual HDMI VGA Multi Screen Display |
| Audio Input | 1 Microphone Input |
| Audio Output | 4 Channel |
| Two Way Audio | Supported With Mic In And Mic Out |
| Motion Detection | 396 Detection Zones 22 × 18 |
| Video Loss Detection | Supported |
| Alarm Input | 16 Channel |
| Alarm Output | 6 Channel |
| Recording Mode | Manual Schedule Continuous Motion Detection Alarm Stop |
| Trigger Events | Recording PTZ Tour Alarm Email FTP Snapshot Buzzer Screen Tips Video Push |
| Search Mode | Time Date Alarm Motion Detection Exact Search |
| Playback | Play Pause Stop Fast Forward Slow Play Rewind Digital Zoom Backup Full Screen |
| Backup | USB Device And Network |
| Hard Disk Support | 4 SATA Ports Up To 10TB Each Plus 1 eSATA Port |
| Maximum User Accounts | 128 Users |
| Record Interval | 1 To 60 Minutes Pre Record 1 To 30 Seconds Post Record 10 To 300 Seconds |
| Network Interface | 1 RJ45 Gigabit Ethernet Port |
| USB Ports | 3 USB Ports 1 USB 2.0 And 2 USB 3.0 |
| Interface Ports | RS485 RS232 RS422 USB HDMI VGA TV |
| Protocols | HTTP HTTPS TCP IP IPv4 IPv6 WiFi 3G 4G SNMP UPnP RTSP UDP SMTP NTP DHCP DNS IP Filter PPPoE DDNS FTP Alarm Server P2P IP Search ONVIF CGI |
| Mobile Access | iPhone iPad Android |
| Power Supply | AC 100V To 240V 50 60 Hz |
| Power Consumption | Less Than 35 Watts Without HDD |
| Operating Temperature | Minus 10 Degree Celsius To Plus 55 Degree Celsius |
| Operating Humidity | 10 Percent To 90 Percent RH |
| Dimensions | 440 × 417 × 76 mm |
| Weight | 5 kg Without HDD |

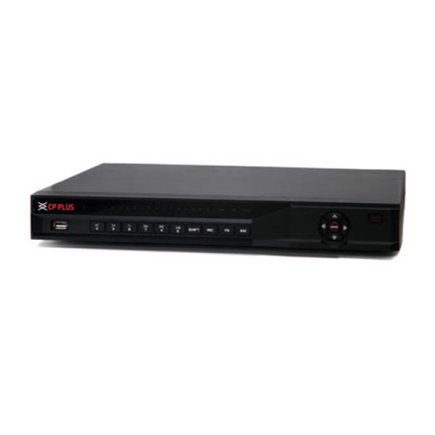

| Model | CP-UVR-1601K1-I2 |
| DVR Type | 16 Channel 5MP Digital Video Recorder |
| Processor | Multi Core Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 16 Plus 8 Channels Up To 6MP Per Channel |
| Video Compression | AI Coding H265 Plus H265 H264 Plus H264 |
| Recording Resolution | 5M N 4M N 1080P 1080N 720P 960H D1 CIF |
| Video Output | 1 HDMI 1 VGA |
| HDMI Resolution | Up To 3840 × 2160 |
| VGA Resolution | Up To 1920 × 1080 |
| Video Display | 1 4 8 9 16 Split Screen |
| Video Channels | 16 BNC Channels |
| Audio Input | 1 Channel RCA |
| Audio Output | 1 Channel RCA |
| Two Way Audio | Supported Via RCA Audio In Out |
| Audio Compression | G711A G711U PCM |
| Face Recognition | Supports 2 Channels Up To 12 Face Images Per Second |
| Stranger Detection | Supported |
| Face Database | 10 Databases Up To 10000 Face Images |
| Motion Detection | 396 Detection Zones |
| Video Loss Detection | Supported |
| Recording Mode | Manual Schedule Motion Detection Alarm Stop |
| Playback | Play Pause Stop Fast Slow Digital Zoom Backup |
| Search Mode | Time Date Alarm Motion Detection Exact Search |
| Backup | USB Device Network |
| Hard Disk Support | 1 SATA Port Up To 10TB |
| Bit Rate | 32 Kbps To 6144 Kbps Per Channel |
| Trigger Events | Recording PTZ Tour Video Push Email FTP Snapshot Buzzer Screen Tips |
| Ethernet | 1 RJ45 10 100 Mbps Port |
| USB Ports | 2 USB Ports One USB 2.0 One USB 3.0 |
| RS485 | 1 Port |
| Protocols | HTTP HTTPS TCP IP IPv4 IPv6 WiFi 3G 4G SNMP UPnP RTSP UDP SMTP NTP DHCP DNS PPPoE DDNS FTP P2P ONVIF CGI |
| Smart Phone Support | iPhone iPad Android |
| Maximum Users | 128 Users |
| Power Supply | DC 12V 2A |
| Power Consumption | Less Than 12 Watts |
| Operating Temperature | Minus 10 Degree Celsius To Plus 55 Degree Celsius |
| Operating Humidity | 0 To 90 Percent RH |
| Dimensions | 260 × 238 × 48 mm |
| Weight | 1.0 kg Without HDD |
| Model | CP-UVR-1601K2-I2 |
| DVR Type | 16 Channel 5MP Digital Video Recorder |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 16 Plus 8 Channels Up To 6MP Per Channel |
| Video Input | 16 BNC Channels |
| Video Output | 1 HDMI 1 VGA |
| Maximum HDMI Resolution | 3840 × 2160 |
| Maximum VGA Resolution | 1920 × 1080 |
| Video Compression | AI Instastream Instastream H265 Plus H264 Plus H264 |
| Recording Resolution | 5MN 4M-N 1080P 1080N 720P 960H D1 CIF |
| Recording Frame Rate | Up To 10 FPS At 5M-N Up To 15 FPS At 4M-N And 1080P Up To 30 FPS At Lower Resolutions |
| Display Split | 1 4 8 9 16 |
| Audio Input | 1 Channel RCA |
| Audio Output | 1 Channel RCA |
| Two Way Talk | Supported Via Audio In Out RCA |
| Audio Compression | G711A G711U PCM |
| Motion Detection | 396 Detection Zones |
| Face Recognition | Supports Up To 12 Face Images Per Second On 2 Channels |
| Stranger Detection | Supported |
| Face Database | 10 Databases Up To 10000 Face Images |
| Recording Mode | Manual Schedule Motion Detection Alarm Stop |
| Search Mode | Time Date Alarm Motion Detection Exact Search |
| Playback | Play Pause Stop Fast Forward Rewind Digital Zoom Backup |
| Trigger Events | Recording PTZ Tour Video Push Email FTP Snapshot Buzzer Screen Tips |
| Bit Rate | 32 Kbps To 6144 Kbps Per Channel |
| Hard Disk Support | 2 SATA Ports Up To 10TB Each |
| Backup | USB Device Network |
| Ethernet | 1 RJ45 10 100 Mbps Port |
| USB Ports | 2 USB Ports 1 USB 2.0 And 1 USB 3.0 |
| RS485 | 1 Port |
| Protocols | HTTP HTTPS TCP IP IPv4 IPv6 WiFi 3G 4G SNMP UPnP RTSP UDP SMTP NTP DHCP DNS DDNS FTP P2P ONVIF CGI |
| Smart Phone Support | iPhone iPad Android |
| Maximum User Accounts | 128 Users |
| Power Supply | DC 12V 3A |
| Power Consumption | Less Than 10 Watts |
| Operating Temperature | Minus 10 Degree Celsius To Plus 55 Degree Celsius |
| Operating Humidity | Up To 90 Percent RH |
| Dimensions | 375 × 288 × 53 mm |
| Weight | 1.8 kg Without HDD |
| Model | CP-UVR-1601L2-4KI2 |
| Device Type | 16 Channel 4K Network Digital Video Recorder |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 16 Plus 16 Channels Up To 6MP Per Channel |
| Video Channels | 16 BNC Channels |
| Video Output | 1 HDMI 1 VGA |
| Video Resolution | HDMI Up To 3840 × 2160 VGA Up To 1920 × 1080 |
| Recording Resolution | 4K 6MP 5MP 4K N 4MP 3MP 4M N 1080P 720P 960H D1 CIF |
| Video Compression | AI Coding H265 Plus H265 H264 Plus H264 |
| Display Split | 1 4 8 9 16 |
| Two Way Talk | Supported Via RCA Audio In And Out |
| Audio Compression | G711A G711U PCM |
| Audio Input | 1 Channel RCA |
| Audio Output | 1 Channel RCA |
| Motion Detection | 396 Zones 22 × 18 |
| Video Loss Detection | Supported |
| Face Database | Up To 10 Databases With 20000 Face Images |
| Stranger Detection | Supported With Adjustable Similarity Threshold |
| Hard Disk Support | 2 SATA Ports Up To 10TB Each |
| Bit Rate | 32 Kbps To 6144 Kbps Per Channel |
| Recording Mode | Manual Schedule Motion Detection Alarm Stop |
| Trigger Events | Recording PTZ Tour Video Push Email FTP Snapshot Buzzer Screen Tips |
| Playback | Play Pause Stop Fast Slow Digital Zoom Backup Repeat Shuffle |
| Backup | USB Device Network |
| Maximum User Accounts | 128 Users |
| Record Interval | 1 To 60 Minutes Pre Record 1 To 30 Seconds Post Record 10 To 300 Seconds |
| Ethernet | 1 RJ45 10 100 Mbps Port |
| USB Ports | 2 USB Ports 1 USB 2.0 And 1 USB 3.0 |
| RS485 | 1 Port |
| Protocols | HTTP HTTPS TCP IP IPv4 IPv6 WiFi 3G 4G SNMP UPnP RTSP UDP SMTP NTP DHCP DNS IP Filter PPPoE DDNS FTP Alarm Server P2P IP Search ONVIF CGI |
| Smart Phone Support | iPhone iPad Android |
| Power Supply | DC 12V 5A |
| Power Consumption | Less Than 15 Watts Without HDD |
| Operating Temperature | Minus 10 Degree Celsius To Plus 55 Degree Celsius |
| Operating Humidity | 0 To 90 Percent RH |
| Dimensions | 375 × 288 × 53 mm |
| Weight | 1.8 kg Without HDD |

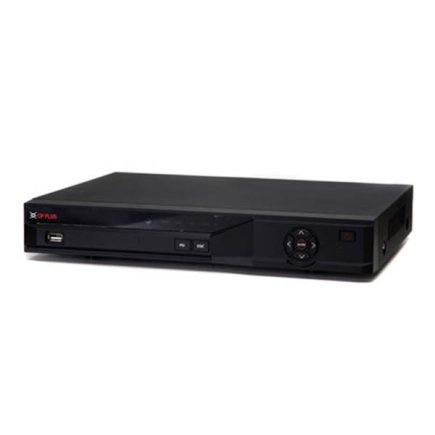

| Model | CP-UVR-1601L1B-4KI2 |
| Device Type | 16 Channel 4K Digital Video Recorder |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 16 Plus 16 Channels Up To 6MP Per Channel |
| Video Input | 16 BNC Channels |
| Video Output | 1 HDMI 1 VGA |
| Video Resolution | HDMI Up To 3840 × 2160 VGA Up To 1920 × 1080 |
| Video Recording | Supports 4K 6MP 5MP 4MP 3MP 1080P 720P 960H D1 CIF Recording |
| Supported Resolution | 6MP 5MP 4K N 4MP 3MP 4M N 1080P 720P 960H D1 CIF |
| Video Compression | AI Instastream Instastream H265 H264 Plus H264 |
| Display Split | 1 4 8 9 16 |
| Audio Input | 1 Channel RCA |
| Audio Output | 1 Channel RCA |
| Audio Compression | G711A G711U PCM |
| Two Way Talk | Supported Via RCA Audio In And Out |
| Motion Detection | 396 Zones 22 × 18 Grid |
| Video Loss Detection | Supported |
| Face Recognition | Up To 12 Face Pictures Per Second On 2 Analog Channels |
| Stranger Mode | Supported With Adjustable Similarity Threshold |
| Face Database | 10 Databases With Up To 10000 Face Images |
| Recording Mode | Manual Schedule Motion Detection Alarm Stop |
| Trigger Events | Recording PTZ Tour Video Push Email FTP Snapshot Buzzer Screen Tips |
| Playback | Play Pause Stop Rewind Fast Play Slow Play Digital Zoom Backup |
| Backup | USB Device Network |
| Maximum User Accounts | 128 Users |
| Record Interval | 1 To 60 Minutes Pre Record 1 To 30 Seconds Post Record 10 To 300 Seconds |
| Hard Disk Support | 1 SATA Port Up To 10TB |
| Ethernet | 1 RJ45 100 Mbps Port |
| USB Ports | 2 USB Ports 1 USB 2.0 And 1 USB 3.0 |
| RS485 | 1 Port |
| Protocols | HTTP HTTPS TCP IP IPv4 IPv6 WiFi 3G 4G SNMP UPnP RTSP UDP NTP DHCP DNS PPPoE DDNS FTP P2P ONVIF CGI |
| Mobile Support | iPhone iPad Android |
| Power Supply | DC 12V 3A |
| Power Consumption | Less Than 10 Watts Without HDD |
| Operating Temperature | Minus 10 Degree Celsius To Plus 50 Degree Celsius |
| Operating Humidity | 0 To 90 Percent RH |
| Dimensions | 325 × 257 × 55 mm |
| Weight | 1.3 kg Without HDD |

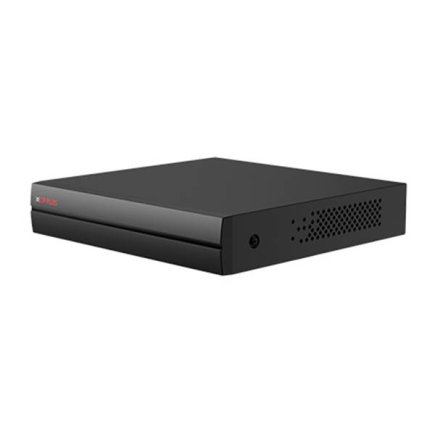

| Model | CP-UVR-1601F1-IC |
| DVR Type | 16 Channel 5M N Digital Video Recorder |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 16 Plus 8 Channels Up To 6MP Per Channel |
| Video Channel | 16 Channel BNC |
| Two Way Talk | Reuse Audio Input And Output RCA |
| User Interface | GUI |
| Video Output | 1 HDMI 1 VGA |
| Video Resolution | HDMI And VGA Up To 1920 × 1080 |
| Video Compression | AI Instastream Instastream H265 H264 Plus H264 |
| Recording Resolution | 5M N 4M N 1080P 1080N 720P 960H D1 CIF |
| Display Split | 1 4 8 9 16 |
| Bit Rate | 32 Kbps To 6144 Kbps Per Channel |
| Audio Compression | G711A G711U PCM |
| Audio Input | 1 RCA External Plus 16 BNC Coaxial |
| Audio Output | 1 RCA |
| Motion Detection | Supported |
| Video Loss Detection | Supported |
| Smart Phone Support | iPhone iPad Android |
| Hard Disk Support | 1 SATA Port Up To 16TB |
| Camera Blank Detection | Supported |
| Search Mode | Time Date Motion Detection Exact Search |
| Backup Mode | USB Device Network |
| Playback Functions | Play Pause Stop Rewind Fast Play Slow Play Digital Zoom Backup Shuffle |
| Maximum User Accounts | 128 Users |
| Record Interval | 1 To 60 Minutes Pre Record 1 To 30 Seconds Post Record 10 To 300 Seconds |
| Ethernet | RJ45 10 100 1000 Mbps |
| USB Ports | 2 USB 2.0 Ports |
| Protocols | HTTP HTTPS TCP IP IPv4 IPv6 WiFi 3G 4G SNMP UPnP RTSP UDP SMTP NTP DHCP DNS IP Filter PPPoE DDNS FTP Alarm Server InstaOn IP Search ONVIF CGI |
| Power Supply | DC 12V 2A |
| Power Consumption | Less Than 12W Without HDD |
| Working Temperature | Minus 10 Degree Celsius To Plus 45 Degree Celsius |
| Working Humidity | 0 To 90 Percent RH |
| Dimensions | 260.0 × 231.4 × 47.6 mm |
| Weight | 0.93 kg Without HDD |

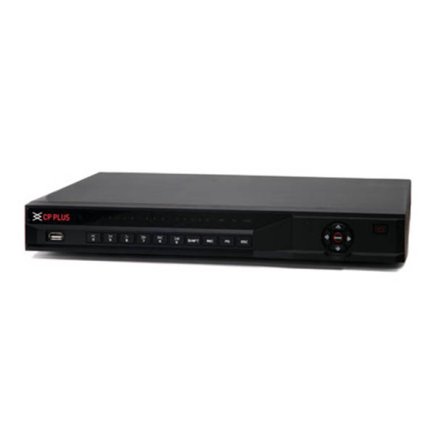

| Model | CP-UVR-1601K2-I3 |
| DVR Type | 16 Channel 5MP Digital Video Recorder |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 16 Plus 8 IP Channels Up To 6MP Per Channel |
| User Interface | GUI |
| Video Output | 1 HDMI 1 VGA |
| Video Resolution | HDMI Up To 3840 × 2160 VGA Up To 1920 × 1080 |
| Video Compression | AI Instastream Instastream H265 H264 Plus H264 |
| Video Display Split | 1 4 8 9 16 |
| Video Input | 16 BNC Channels |
| Audio Compression | G711A G711U PCM |
| Audio Input | 1 RCA External 16 BNC Coaxial |
| Audio Output | 1 RCA Channel |
| Motion Detection | 396 Detection Zones 22 × 18 |
| Video Loss Detection | Supported |
| Smartphone Support | iPhone iPad Android |
| AI Face Detection | Gender Age Glasses Expression Face Mask Beard Detection |
| Hard Disk Support | 2 SATA Ports Up To 16TB Per HDD |
| Bit Rate | 32 Kbps To 6144 Kbps Per Channel |
| Recording Mode | Manual Schedule Motion Detection Alarm Stop |
| Backup Mode | USB Device Network |
| Playback Functions | Play Pause Stop Fast Forward Rewind Slow Motion Backup Digital Zoom |
| Record Interval | 1 To 60 Minutes Pre Record 1 To 30 Seconds Post Record 10 To 300 Seconds |
| Ethernet | RJ45 10 100 1000 Mbps |
| USB Ports | 2 USB Ports 1 USB 2.0 And 1 USB 3.0 |
| Serial Interface | RS485 RS232 Optional |
| Network Protocol | HTTP HTTPS TCP IP IPv4 RTSP UDP SMTP NTP DHCP DNS DDNS ONVIF CGI InstaOn |
| Power Supply | DC 12V 2A |
| Power Consumption | Less Than 12 Watts |
| Operating Temperature | Minus 10 Degree Celsius To Plus 55 Degree Celsius |
| Operating Humidity | 10 To 90 Percent RH |
| Dimensions | 375 × 289 × 53 mm |
| Weight | 1.56 kg |

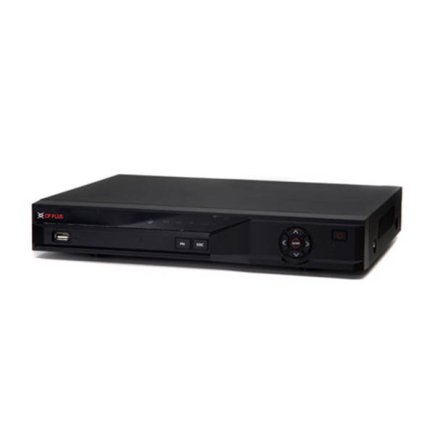

| Model | CP-UVR-1601L1B-4KI3 |
| DVR Type | 16 Channel 4K Digital Video Recorder |
| Processor | Industrial Grade Processor |
| Operating System | Embedded Linux |
| Analog Camera Input | 16 BNC Ports Supports HDCVI AHD TVI CVBS Auto Detect |
| IP Camera Input | Up To 32 IP Channels With 128 Mbps Incoming Recording And Outgoing Bandwidth |
| User Interface | Web And Local GUI |
| Video Output | 1 HDMI 1 VGA |
| Maximum Camera Resolution | Supports Up To 4K Recording |
| Display Resolution | HDMI Up To 3840 × 2160 VGA Up To 1920 × 1080 |
| Video Compression | H265 Smart H264 Plus H264 |
| Encode Strategy | AI Instastream Instastream |
| Display Split | 1 4 8 9 16 |
| AI Perimeter Protection | Up To 8 Channels With IVS Support Depending On Model |
| Face Detection | 2 AI Channels Up To 12 Face Images Per Second Per Channel |
| Face Recognition | 2 AI Channels |
| Face Database Capacity | Up To 10 Databases With 20000 Face Images |
| Face Attributes | Gender Age Glasses Expression Face Mask Beard |
| SMD Plus | 16 Channels Human And Vehicle Detection |
| Motion Detection | Supported |
| General Alarm | Motion Detection Video Loss Tampering Local Alarm |
| Anomaly Alarm | No Disk Storage Error Disk Full Camera Offline IP Conflict MAC Conflict |
| Alarm Linkage | Record Snapshot IPC Alarm Voice Prompt Buzzer Log Preset Email |
| Recording Mode | General Motion Detection Intelligent Alarm POS |
| Playback | Instant General Event Tag Smart Playback |
| Playback Channels | 1 4 9 16 |
| Audio Compression | G711a G711u PCM |
| Audio Input | 1 RCA Plus 16 Channel BNC Coaxial Audio |
| Audio Output | 1 RCA Channel |
| Two Way Talk | Supported |
| Ethernet | 1 RJ45 10 100 1000 Mbps Port |
| USB Ports | 1 Front USB 2.0 1 Rear USB 3.0 |
| RS485 | 1 Port |
| Protocols | HTTP HTTPS TCP IP IPv4 RTSP UDP SMTP NTP DHCP DNS DDNS InstaOn ONVIF CGI |
| Hard Disk Support | 1 SATA Port Up To 16 TB |
| Backup | USB Device Network |
| Smart Phone Support | iPhone iPad Android |
| Power Supply | 12 VDC 3 Amp |
| Power Consumption | Less Than 15 Watts Without HDD |
| Operating Temperature | Minus 10 Degree Celsius To Plus 55 Degree Celsius |
| Operating Humidity | 10 To 90 Percent RH |
| Dimensions | 325.0 × 257.1 × 55.0 mm |
| Weight | 1.30 kg |
| Model | CP-UVR-1616K8-I3 |
| DVR Type | 16 Channel 5MN AI Digital Video Recorder |
| Processor | Industrial Grade Processor |
| Operating System | Embedded Linux |
| Operating Interface | Web And Local GUI |
| Intellisearch 20 AI | 2 Channels |
| Perimeter Protection AI | Advanced Mode 2 Channels General Mode 4 Channels |
| Face Attributes | Gender Age Group Glasses Expressions Face Mask Beard |
| Face Detection | 2 Channels Up To 12 Face Images Per Second Per Channel |
| Face Database Capacity | Up To 10 Databases With 10000 Images |
| Face Recognition | 2 Channels |
| IMD Plus | 16 Channels Human And Vehicle Detection |
| IMD By Camera | 24 Channels |
| AI Video Quality Analytics | Brightness Color Cast Defocus Overexposure Contrast Black And White Detection |
| Scene Changing | 1 Channel |
| Irregular Black Block Masking | 1 Channel |
| Analog Camera Input | 16 BNC Ports Supports HDCVI AHD TVI CVBS Auto Detect |
| IP Camera Input | Up To 24 Channels Total 8 IP Plus 16 Analog |
| Incoming Bandwidth | 128 Mbps |
| Recording Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 128 Mbps |
| Stream Capability | Dual Stream |
| Encoding Capacity | Supports 5MP 5MN 4MN 1080P 720P D1 CIF Recording |
| Video Compression | AI Instastream Instastream H265 H264 Plus H264 |
| Bit Rate | 32 Kbps To 6144 Kbps |
| Audio Sample Rate | 8 KHz 16 Bit |
| Audio Bit Rate | 64 Kbps |
| Video Output | 2 HDMI 1 VGA 1 CVBS |
| Video Display Split | 1 4 8 9 16 And 25 Split In IP Extension Mode |
| Protocols | HTTP HTTPS TCP IP IPv4 IPv6 RTSP UDP NTP DHCP DNS SMTP UPnP FTP DDNS SNMP ONVIF CGI SDK |
| Smart Phone Support | iOS Android |
| Browser Support | Chrome IE Safari Edge Firefox |
| Network Mode | Multi Address Fault Tolerance Load Balance |
| Record Mode | General Alarm Motion Detection Intelligent POS |
| Playback Mode | Instant General Event Tag Smart Playback |
| Backup Mode | USB Device And Network |
| Disk Group | Supported |
| General Alarm | Motion Detection Local Alarm Alarm Box Camera Alarm Network Alarm PIR Alarm |
| Abnormality Alarm | No Disk Disk Error Low Space Network Disconnection IP Conflict MAC Conflict Video Loss Camera Offline |
| Intelligent Alarm | Face Detection Face Recognition Perimeter Protection IMD Plus |
| Alarm Linkage | Record Snapshot Alarm Output Audio Buzzer Log Preset Email |
| CVBS Output | 1 Channel |
| Audio Input | 16 Channels BNC With Coaxial Audio |
| Audio Output | 1 Channel BNC |
| Two Way Talk | 1 Channel BNC |
| Alarm Input | 16 Channels |
| Alarm Output | 6 Channels |
| Disk Interface | 8 SATA Ports Up To 16TB Per HDD |
| USB Ports | 4 USB Ports 2 Front USB 20 And 2 Rear USB 30 |
| Additional Interfaces | 1 RS232 1 RS485 1 eSATA Port |
| Ethernet | 2 RJ45 10 100 1000 Mbps Ports |
| Power Supply | 100 To 240 VAC 50 Hz |
| Power Consumption | Less Than 15 Watts Without HDD |
| Operating Temperature | Minus 10 Degree Celsius To Plus 55 Degree Celsius |
| Operating Humidity | 10 To 90 Percent RH Non Condensing |
| Storage Temperature | Minus 20 Degree Celsius To Plus 60 Degree Celsius |
| Dimensions | 440.0 × 463.0 × 94.9 mm |
| Weight | 6720 g |
| Model | CP-UVR-1604K4-I3 |
| Recorder Type | 16 Channel 5M-N Digital Video Recorder |
| Processor | Industrial Grade Processor |
| Operating System | Embedded Linux |
| User Interface | Web Local GUI |
| IntelliSearch 2.0 AI | 2 Channels |
| Perimeter Protection AI | Advanced Mode 2 Channels General Mode 4 Channels |
| Face Attributes | Gender Age Group Glasses Expressions Face Mask Beard |
| Face Detection Performance | 2 Channels Up To 12 Face Images Per Second Per Channel |
| Face Database Capacity | Up To 10 Databases With 10000 Face Images |
| IMD Plus By DVR | 16 Channels Human And Vehicle Detection |
| IMD Plus By Camera | 24 Channels |
| AI Video Quality Analytics | Brightness Color Cast Defocus Overexposure Contrast Black And White Detection |
| Scene Changing Detection | 1 Channel |
| Irregular Black Block Masking | 1 Channel |
| Analog Camera Input | 16 BNC Ports HDCVI AHD TVI CVBS Auto Detect |
| IP Camera Input | Up To 24 Channels 128 Mbps Incoming Recording And Outgoing Bandwidth |
| Video Compression | Instastream H.265 H.264+ H.264 |
| Video Streaming | Main Stream Up To 5MP Sub Stream D1 CIF |
| Stream Capability | Dual Stream |
| Bit Rate | 32 kbps To 6144 kbps |
| Audio Sample Rate | 8 kHz 16 Bit |
| Audio Bit Rate | 64 Kbps |
| Video Output | 2 HDMI 1 VGA 1 CVBS Up To 4K HDMI Output |
| Video Display Split | 1 4 8 9 16 25 |
| Audio Compression | G.711a G.711u PCM AAC |
| Protocols | HTTPS TCP IP IPv4 IPv6 RTSP UDP NTP DHCP DNS SMTP UPnP FTP DDNS SNMP ONVIF CGI SDK |
| Network Mode | Multi Address Mode Fault Tolerance Load Balance |
| Recording Mode | General Motion Detection Intelligent Alarm POS |
| Playback Mode | Instant General Event Tag Smart Playback |
| Backup Method | USB Device Network |
| Disk Group | Supported |
| General Alarm | Motion Detection Local Alarm Alarm Box HDCVI Alarm Camera External Alarm Network Alarm PIR Alarm |
| Alarm Linkage | Record Snapshot Local Alarm IPC Alarm Audio Buzzer Log Preset Email |
| CVBS Output | 1 Channel |
| Audio Input | 4 Channels BNC 16 Channels BNC Coaxial Audio |
| Two Way Talk | 1 Channel BNC |
| Alarm Input | 16 Channels |
| Hard Disk Support | 4 SATA Ports Up To 16 TB Per HDD |
| Interface Ports | 1 Front USB 2.0 2 Rear USB 3.0 1 RS485 1 RS232 1 eSATA |
| Ethernet | 2 RJ45 10/100/1000 Mbps Ports |
| Browser Support | Chrome Internet Explorer Safari Edge Firefox |
| Mobile Support | iOS Android |
| Power Supply | 100 To 240 VAC 50 Hz |
| Power Consumption | Less Than 15 Watts Without HDD |
| Operating Temperature | Minus 10 Degree Celsius To Plus 55 Degree Celsius |
| Operating Humidity | 10 Percent To 90 Percent RH Non Condensing |
| Storage Temperature | Minus 20 Degree Celsius To Plus 60 Degree Celsius |
| Dimensions | 440.0 × 420.2 × 76.0 mm |
| Weight | 4450 g |
Your DVR is invisible—until the day you need that one crucial recording. Maybe you’re replaying a late-night delivery at the shop, checking who rang your doorbell, or realizing your old system just isn’t keeping up. That’s when you want it from the Top DVR Dealers in Delhi, India, that won’t let you down. We at Mahajan Enterprises, make sure your memories and security are never left to chance, and getting set up is actually easy, not another thing to stress about.
When you’re sorting out your security setup, you want a DVR that just clicks with your system—not something random that sort of fits but ends up being a headache. That’s where we, as the Top OEM DVR Dealers in Delhi, India, can really set your place apart. At Mahajan Enterprises, we actually care about matching you with a DVR that feels like it was made for your setup, whether you’re building from the ground up or tweaking what you’ve already got.
Mahajan Enterprises keeps a full stock of multi-channel recording units on our warehouse shelves so installers can pick up their gear without waiting around for backorders. When you are wiring up a retail space or an apartment building, setting up a DVR by the Top Hikvision DVR Dealers in Delhi, India, gives you a dependable hub to record and store continuous video footage. These DVR units handle high-definition camera feeds smoothly, using modern compression to save hard drive space without turning the video into a blurry mess. Putting in a solid recorder ensures that if an incident happens on site, shop owners can pull up clean, clear footage right when they need it.
Mahajan Enterprises keeps a steady inventory of multi-channel recorders stacked right on our warehouse floor so installers can pick up their gear without waiting on long shipping delays. When you are fitting out a shop, warehouse, or residential complex, hooking up a DVR from the Top CP Plus DVR Dealers in Delhi, India, gives you a solid backbone for storing round-the-clock security footage. These units process high-definition video feeds smoothly, encoding data efficiently so your hard drive holds days of clear recording without filling up too quickly. Installing a practical recorder ensures that whenever a business owner needs to review an incident, the video playback is clear, crisp, and easy to retrieve.
Ready to take your security to the next level? At Mahajan Enterprises, we know how important it is to truly see what’s happening around your shop, office, or even at home. We, being the Top NVR Dealers in Delhi, India, make sure that our product lets you hook up a bunch of IP cameras, record everything in HD, and finally stop worrying about missing that one important moment because your footage was too fuzzy.
Mahajan Enterprises keeps IP video recorders sitting on our Delhi workshop shelves so installers can grab a box and head right to the site. Setting up an NVR by the Top OEM NVR Dealers in Delhi, India, gives you a clean, unbranded box that pulls clear video off IP cameras through a standard network cable. These units process high-resolution video streams smoothly, compression keeping drive space open without making the playback look grainy. Having an open-label recorder gives contractors room to customize the software menu, set up client accounts, and build out a security network that fits the property.
Mahajan Enterprises keeps stacks of IP network recorders ready in our main warehouse so installation teams can pick up hardware without waiting around for fresh stock arrivals. When you are stringing network cable across a multi-story office or securing a commercial yard, plugging in a DVR from the Top Hikvision NVR Dealers in Delhi, India, gives you a central point to manage every camera feed on the local network. These recorders process heavy, high-megapixel IP camera data without lagging, saving crisp footage while using modern compression to keep hard drives from filling up too quickly. Having a solid network recorder on site gives property owners a dependable way to review clear, stutter-free playback whenever an issue comes up.
Mahajan Enterprises keeps a heavy stock of IP network video recorders sitting right on our Delhi warehouse floor so local technicians can pick up gear and get straight to work. When you are stringing network cable across a busy commercial floor or a residential site, putting in a NVR by the Top CP Plus NVR Dealers in Delhi, India, gives you a dependable nerve center to manage high-definition IP camera feeds. These units handle heavy network video traffic cleanly, compressing large video files so hard drives stay open for longer recording histories. Laying down a solid network recorder gives shop owners and property managers clear, smooth video playback without camera lag or frame drops when reviewing security logs.
