| Model | DS-2DE7A225IWG1-E |
| Camera Type | 2MP Network PTZ Speed Dome Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Minimum Illumination | Color: 0.005 Lux @ F1.6 (AGC ON), B/W: 0.001 Lux @ F1.6 (AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day/Night Mode | IR Cut Filter |
| Optical Zoom | 25× Optical Zoom |
| Digital Zoom | 16× Digital Zoom |
| Slow Shutter | Supported |
| Lens | 4.8 to 120 mm Motorized Lens |
| Field of View | Horizontal: 55° to 2.65°, Vertical: 33° to 1.5°, Diagonal: 61.5° to 3.03° |
| Focus Mode | Auto / Semi-Auto / Manual |
| Aperture | F1.6 |
| Zoom Speed | Approx. 3.5 Seconds |
| IR Type | Smart IR |
| IR Distance | Up to 200 m |
| Pan Range | 360° Endless |
| Tilt Range | -15° to 90° (Auto Flip) |
| Pan Speed | 0.1° to 160°/s (Preset: 240°/s) |
| Tilt Speed | 0.1° to 120°/s (Preset: 200°/s) |
| Proportional Pan | Supported |
| Presets | 300 |
| Patrol Scan | 8 Patrols, Up to 32 Presets Each |
| Pattern Scan | 4 Pattern Scans |
| 3D Positioning | Supported |
| Power-Off Memory | Supported |
| Main Stream | Up to 1920 × 1080 @ 50/60 fps |
| Sub Stream | Up to 704 × 576 @ 25 fps / 704 × 480 @ 30 fps |
| Third Stream | Up to 1920 × 1080 @ 25/30 fps |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Profile | Baseline / Main / High Profile |
| H.265 Profile | Main Profile |
| ROI | 8 Fixed Regions Per Stream |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 16–64 Kbps (AAC-LC), 8–320 Kbps (MP3) |
| Audio Sampling Rate | MP2L2: 16 kHz, AAC-LC: 16 kHz, PCM: 8/16 kHz, MP3: 8/16 kHz |
| Noise Filtering | Environment Noise Filtering |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, RTP, RTSP, RTCP, DHCP, DNS, DDNS, FTP, SMTP, SNMP, NTP, QoS, PPPoE, Bonjour, IGMP, ICMP, UPnP, 802.1X |
| API Support | ONVIF (Profile S/G/T), ISAPI, SDK, ISUP |
| Simultaneous Live View | Up to 20 Channels |
| User Access | Up to 32 Users (Administrator, Operator & User) |
| Security | Password Protection, HTTPS, TLS 1.2/1.3, 802.1X Authentication, MAC Authentication, IP Filter, Security Audit Log |
| Network Storage | NAS (NFS/SMB/CIFS), ANR |
| Client Software | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser Support | Chrome 80+, Firefox 80+, Safari 13+, Edge 89+ |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Gain & White Balance |
| Day/Night Switch | Day / Night / Auto / Schedule |
| WDR | 120 dB |
| SNR | >52 dB |
| Defog | Digital Defog |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 Programmable Polygon Masks |
| Regional Focus / Exposure | Supported |
| VR View | 360° Real Scene Stitched Panoramic Image |
| Ethernet Interface | 1 × RJ45 10/100 Mbps Ethernet Port |
| Memory Card Support | microSD / microSDHC / microSDXC up to 512 GB |
| Built-in Speaker | 1 Speaker (Up to 30 m) |
| Built-in Microphones | 2 Array Microphones (Up to 8 m) |
| Audio Interface | 1 Audio In, 1 Audio Out |
| Alarm Interface | 2 Alarm Inputs, 1 Alarm Output |
| Reset Button | Supported |
| Basic Events | Motion Detection, Video Tampering, Alarm I/O, Exception |
| Smart Events | Line Crossing, Intrusion Detection, Region Entrance & Exit Detection |
| Linkage Actions | FTP/NAS Upload, Email, Alarm Output, Recording, Audible Warning, White Light, PTZ Tracking |
| Face Capture | Supports Detection, Capture & Best Face Selection for Up to 5 Faces |
| People Counting | Up to 8 Detection Regions with Density & Waiting Time Analysis |
| Smart Tracking | Manual & Auto Tracking |
| Power Supply | 36 VDC (Max. 48 W), PoE 802.3bt Type 3 Class 6, Hi-PoE |
| Dimensions | Ø220 × 363.3 mm |
| Weight | Approx. 5 kg |
| Material | ADC12 + PC + 10% Glass Fiber |
| Operating Temperature | -30°C to +65°C |
| Operating Humidity | ≤90% RH (Non-Condensing) |
| Demist | Supported |
| Certifications | CE, CB, RCM, RoHS, WEEE, REACH |
| Protection Rating | IP67, IK10, TVS 6000V Lightning, Surge & Voltage Transient Protection |
| Model | DS-2DE4A425IWG1-E |
| Camera Type | 4MP Network PTZ Speed Dome Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.005 Lux @ F1.6 (AGC ON), B/W: 0.001 Lux @ F1.6 (AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day/Night Mode | IR Cut Filter |
| Optical Zoom | 25× Optical Zoom |
| Digital Zoom | 16× Digital Zoom |
| Slow Shutter | Supported |
| Lens | 4.8 to 120 mm Motorized Lens |
| Field of View | Horizontal: 53.3° to 2.6°, Vertical: 30.6° to 1.5°, Diagonal: 60.5° to 3° |
| Focus Mode | Auto / Semi-Auto / Manual |
| Aperture | F1.6 |
| Zoom Speed | Approx. 3.4 Seconds |
| IR Type | Smart IR |
| IR Distance | Up to 50 m |
| IR Wavelength | 850 nm |
| Pan Range | 0° to 360° Endless |
| Tilt Range | -5° to 90° |
| Pan Speed | 0.1° to 300°/s (Preset: 350°/s) |
| Tilt Speed | 0.1° to 160°/s (Preset: 200°/s) |
| Presets | 300 Presets |
| Patrol Scan | 8 Patrols (32 Presets Each) |
| Pattern Scan | 4 Pattern Scans |
| 3D Positioning | Supported |
| Power-Off Memory | Supported |
| Main Stream | Up to 2560 × 1440 @ 50/60 fps |
| Sub Stream | Up to 704 × 576 @ 25 fps / 704 × 480 @ 30 fps |
| Third Stream | Up to 1920 × 1080 @ 25/30 fps |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| H.264 Profile | Baseline, Main, High Profile |
| H.265 Profile | Main Profile |
| ROI | 8 Fixed Regions per Stream |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Noise Filtering | Environment Noise Filtering |
| Network Protocols | TCP/IP, HTTP, HTTPS, FTP, SFTP, DHCP, DDNS, DNS, RTP, RTSP, RTCP, SMTP, SNMP, NTP, QoS, IPv4/IPv6, SSL/TLS, ISUP, WebSocket, 802.1X |
| API Support | ONVIF (Profile S/G/T), ISAPI, SDK, ISUP |
| Simultaneous Live View | Up to 20 Channels |
| User Access | Up to 32 Users (3 User Levels) |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Supported Clients | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser Support | Chrome 80+, Firefox 80+, Safari 13+, Edge 89+ |
| WDR | 120 dB True WDR |
| SNR | >52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Digital Defog |
| Privacy Mask | 24 Polygon Privacy Masks |
| Regional Focus / Exposure | Supported |
| Ethernet Interface | 1 × RJ45 10/100 Mbps Ethernet Port |
| Memory Card Support | microSD / microSDHC / microSDXC up to 512 GB |
| Audio Interface | 1 Audio In, 1 Audio Out |
| Alarm Interface | 2 Alarm Inputs, 2 Alarm Outputs |
| Reset Button | Supported |
| Basic Events | Motion Detection, Video Tampering, Alarm I/O, Exception |
| Smart Events | Line Crossing, Intrusion, Region Entrance/Exit, Unattended Baggage, Object Removal, Audio Exception |
| Smart Tracking | Manual & Auto Tracking |
| Face Capture | Detects Up to 5 Faces Simultaneously |
| People Counting | Regional People Counting (Up to 8 Detection Areas) |
| Power Supply | 12 VDC, Max. 24 W / PoE (IEEE 802.3at) |
| Dimensions | Ø169 × 161 mm |
| Weight | Approx. 2.45 kg |
| Operating Temperature | -30°C to +65°C |
| Operating Humidity | ≤90% RH (Non-Condensing) |
| Protection Rating | IP67, TVS 6000 V Lightning, Surge & Voltage Transient Protection |
| General Functions | Mirror, Password Protection |

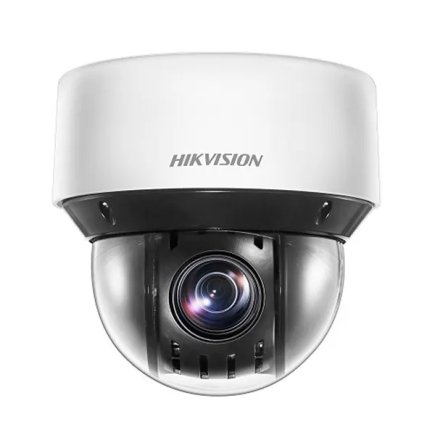

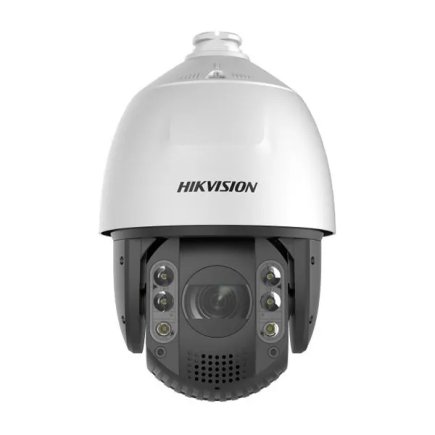

| Model | DS-2DE4A225IWG-E |
| Product Type | 2MP Network Speed Dome PTZ Camera |
| Technology | DarkFighter IR AcuSense |
| Image Sensor | 1 By 2.8 Inch Progressive Scan CMOS |
| Maximum Resolution | 1920 x 1080 Full HD |
| Minimum Illumination | Color 0.005 Lux Black And White 0.001 Lux 0 Lux With IR |
| Shutter Speed | 1 Second To 1 By 30000 Second |
| Day Night Mode | IR Cut Filter |
| Optical Zoom | 25X Optical Zoom |
| Digital Zoom | 16X Digital Zoom |
| Lens | 4.8 mm To 120 mm |
| Viewing Angle | Horizontal 54.9 Degree To 2.7 Degree Vertical 31.5 Degree To 1.5 Degree |
| Focus Mode | Auto Semi Auto Manual |
| Aperture | Maximum F1.6 |
| IR Distance | Up To 50 m |
| IR Wavelength | 850 nm |
| Smart IR | Supported |
| Pan Range | 0 Degree To 360 Degree |
| Tilt Range | Minus 5 Degree To Plus 90 Degree |
| Pan Speed | 0.1 Degree To 300 Degree Per Second Preset 350 Degree Per Second |
| Tilt Speed | 0.1 Degree To 160 Degree Per Second Preset 200 Degree Per Second |
| Preset Positions | 300 Presets |
| Patrol Scan | 8 Patrols Up To 32 Presets Each |
| Pattern Scan | 4 Pattern Scans |
| Power Off Memory | Supported |
| Video Compression | H.265 Plus H.265 H.264 Plus H.264 MJPEG |
| Audio Compression | G711 A Law G711 U Law G7221 G726 MP2L2 PCM AAC LC |
| Network Protocols | IPv4 IPv6 HTTP HTTPS FTP SMTP TCP IP UDP RTSP RTP RTCP DHCP DDNS DNS SNMP NTP UPnP QoS WebSocket |
| API Support | ONVIF Profile S Profile G Profile T ISAPI SDK ISUP |
| Network Storage | NAS NFS SMB CIFS ANR |
| Ethernet | RJ45 10 By 100 Mbps |
| Memory Card Support | MicroSD SDHC SDXC Up To 256 GB |
| Audio Interface | 1 Audio Input 1 Audio Output |
| Alarm Interface | 2 Alarm Inputs 2 Alarm Outputs |
| Image Enhancement | 120 dB WDR BLC HLC 3D DNR Digital Defog |
| Privacy Mask | 24 Programmable Polygon Privacy Masks |
| Smart Events | Line Crossing Intrusion Region Entrance Region Exit Object Removal Unattended Baggage Audio Exception |
| AI Features | Face Capture Auto Tracking AcuSense |
| Power Supply | 12V DC Or PoE IEEE 802.3at |
| Power Consumption | Maximum 24W |
| Protection | IP66 TVS 6000V Lightning Surge Protection |
| Operating Temperature | Minus 30 Degree Celsius To Plus 65 Degree Celsius |
| Operating Humidity | 90 Percent RH Non Condensing |
| Dimensions | 169 x 161 mm |
| Weight | Approx 2.45 kg |

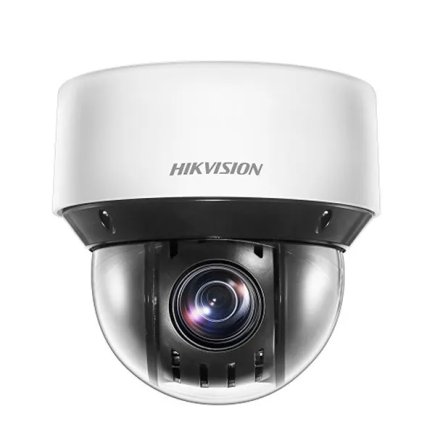

| Model | DS-2DE4A225IWG1-E |
| Product Type | 2MP Network Speed Dome PTZ Camera |
| Technology | DarkFighter IR AcuSense |
| Image Sensor | 1 By 2.8 Inch Progressive Scan CMOS |
| Maximum Resolution | 1920 x 1080 Full HD |
| Minimum Illumination | Color 0.005 Lux Black And White 0.001 Lux 0 Lux With IR |
| Shutter Speed | 1 Second To 1 By 30000 Second |
| Day Night Mode | IR Cut Filter |
| Optical Zoom | 25X Optical Zoom |
| Digital Zoom | 16X Digital Zoom |
| Lens | 4.8 mm To 120 mm |
| Viewing Angle | Horizontal 54.9 Degree To 2.7 Degree |
| Focus Mode | Auto Semi Auto Manual |
| Aperture | Maximum F1.6 |
| IR Distance | Up To 50 m |
| Smart IR | Supported |
| Pan Range | 360 Degree |
| Tilt Range | Minus 5 Degree To Plus 90 Degree |
| Preset Positions | 300 Presets |
| Patrol Scan | 8 Patrols Up To 32 Presets Each |
| Pattern Scan | 4 Pattern Scans |
| Power Off Memory | Supported |
| Video Compression | H265 Plus H265 H264 Plus H264 MJPEG |
| Audio Compression | G711 G7221 G726 MP2L2 PCM MP3 AAC LC |
| Network Protocols | TCP IP HTTP HTTPS FTP SFTP DHCP DNS DDNS RTSP RTP RTCP IPv4 IPv6 SMTP SNMP NTP QoS SSL TLS WebSocket |
| API Support | ONVIF Profile S G T ISAPI SDK ISUP |
| Network Storage | NAS NFS SMB CIFS ANR |
| Ethernet | RJ45 10 By 100 Mbps |
| Memory Card Support | MicroSD MicroSDHC MicroSDXC Up To 512 GB |
| Audio Interface | 1 Audio Input 1 Audio Output |
| Alarm Interface | 2 Alarm Inputs 2 Alarm Outputs |
| Image Enhancement | 120 dB WDR BLC HLC 3D DNR Digital Defog |
| Privacy Mask | 24 Programmable Polygon Masks |
| Smart Events | Line Crossing Intrusion Region Entrance Region Exit Object Removal Unattended Baggage Audio Exception |
| AI Features | Face Capture People Counting Auto Tracking AcuSense |
| Power Supply | 12V DC Or PoE IEEE 802.3at |
| Power Consumption | Maximum 24W |
| Protection | IP67 TVS 6000V Lightning Surge Protection |
| Operating Temperature | Minus 30 Degree Celsius To Plus 65 Degree Celsius |
| Operating Humidity | 90 Percent RH Non Condensing |
| Dimensions | 169 x 161 mm |
| Weight | Approx 2.45 kg |
| Model | PT-NPZE47A32WN-DPB(W) |
| Type | 4 MP 32x Aisense Network PTZ Camera |
| Image Sensor | 1/2.8 Inch Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | Color 0.005 Lux F1.6 AGC On B W 0.001 Lux F1.6 AGC On 0 Lux With IR |
| Shutter Speed | 1/1 s To 1/100000 s |
| Day Night | IR Cut Filter |
| Optical Zoom | 32x |
| Digital Zoom | 16x |
| Slow Shutter | Yes |
| Focal Length | 4.25 To 136 mm |
| Field Of View | Horizontal 61.2° To 2.5° Vertical 36.4° To 1.4° Diagonal 68.5° To 2.8° |
| Focus Mode | Auto Rapid Focus Semi Auto Manual |
| Aperture | Maximum F1.6 |
| Zoom Speed | Approx. 3 Seconds |
| Supplement Light | IR White Light |
| Supplement Light Range | White Light Up To 100 m IR Up To 150 m |
| Pan Range | 360° |
| Tilt Range | -15° To 90° Auto Flip |
| Pan Speed | 0.1° To 160° Per Second Preset Speed 240° Per Second |
| Tilt Speed | 0.1° To 120° Per Second Preset Speed 200° Per Second |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 Patrols Up To 32 Presets Each |
| Pattern Scan | 4 Pattern Scans |
| Park Action | Auto Scan Frame Scan Random Scan Patrol Scan Pattern Scan Panorama Scan Tilt Scan Preset |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset Pattern Scan Patrol Scan Auto Scan Tilt Scan Random Scan Frame Scan Panorama Scan |
| Power Off Memory | Yes |
| Main Stream | 2688 × 1520 2560 × 1440 1920 × 1080 1280 × 960 1280 × 720 Up To 30 FPS |
| Sub Stream | 704 × 576 640 × 480 352 × 288 Up To 30 FPS |
| Third Stream | 1920 × 1080 1280 × 960 1280 × 720 704 × 576 640 × 480 352 × 288 Up To 30 FPS |
| Video Compression | H.265 H.264 MJPEG |
| Video Bit Rate | 32 Kbps To 16384 Kbps |
| H.264 Profile | Baseline Main High Profile |
| H.265 Profile | Main Profile |
| Scalable Video Coding | H.264 And H.265 Encoding |
| Region Of Interest | 8 Fixed Regions Per Stream |
| Audio Compression | G.711 G.722.1 G.726 MP2L2 PCM MP3 AAC LC |
| Audio Bit Rate | 16 Kbps To 160 Kbps Depending On Codec |
| Audio Sampling Rate | 8 kHz 16 kHz 32 kHz 48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP IP HTTP HTTPS RTSP RTCP DHCP DNS FTP SMTP SNMP SSL TLS IPv4 IPv6 DDNS QoS UPnP SFTP WebSocket Bonjour |
| Simultaneous Live View | Up To 20 Channels |
| API | ONVIF Profile S Profile G Profile T Profile M SISTP OTAP |
| User Capacity | Up To 32 Users |
| Security | Password Protection HTTPS Encryption TLS 1.3 Watermark IP Address Filter Security Audit Log |
| Network Storage | NAS NFS SMB CIFS ANR |
| Browser Support | IE11 Chrome 80 Plus Firefox 80 Plus Safari 13 Plus Edge 89 Plus |
| Image Settings | White Balance Brightness Contrast Saturation Sharpness |
| Day Night Switch | Day Night Auto Schedule |
| Wide Dynamic Range | 120 dB WDR |
| Signal To Noise Ratio | Greater Than 52 dB |
| Image Stabilization | Electronic Image Stabilization EIS |
| Image Enhancement | BLC HLC 3D DNR |
| Privacy Mask | 24 Programmable Polygon Privacy Masks |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Ethernet Interface | 1 RJ45 10M 100M Self Adaptive Ethernet Port |
| On Board Storage | Micro SD Micro SDHC Micro SDXC Up To 512 GB |
| Built In Speaker | 1 Speaker Effective Distance Up To 30 m |
| Audio Interface | 1 Audio Input Line In 1 Audio Output Line Out |
| Alarm Interface | 2 Inputs 1 Output |
| Reset | Yes |
| Basic Events | Motion Detection Video Tampering Alarm Input Output Network Exception Illegal Login HDD Error Audio Exception |
| Smart Events | Fast Moving Detection Unattended Baggage Region Entrance People Gathering Region Exit Line Crossing Intrusion Loitering Parking Object Removal |
| Linkage Action | FTP NAS Memory Card Email Alarm Recording Audible Warning White Light PTZ Actions |
| Smart Tracking | Manual Tracking Auto Tracking |
| Perimeter Protection | Human And Vehicle Line Crossing Region Entrance Intrusion Region Exit Detection |
| Power Supply | 36 VDC 1.33 A Hi PoE 42.5 To 57 V IEEE 802.3bt Maximum 42 W |
| Dimensions | Ø220 × 360.2 mm |
| Weight | Approx. 5.5 kg |
| Material | ADC12 |
| Operating Temperature | -30°C To 65°C |
| Operating Humidity | Up To 90 Percent Non Condensing |
| Demist | Yes |
| Protection | IP67 IK10 |

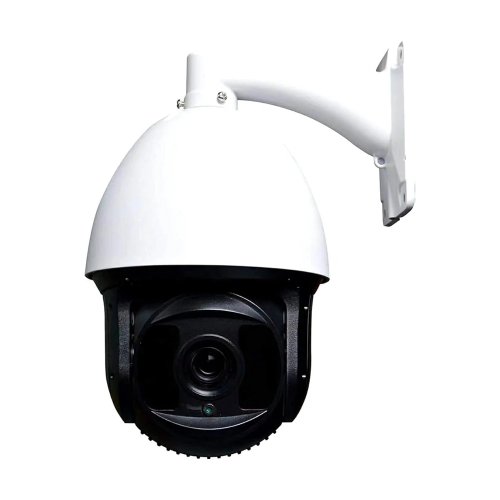

| Model | PT-NPZE27A32WN-DPB(W) |
| Type | 2 MP 32x Aisense Network PTZ Camera |
| Image Sensor | 1/2.8 Inch Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Minimum Illumination | Color 0.005 Lux F1.6 AGC On B W 0.001 Lux F1.6 AGC On 0 Lux With IR |
| Shutter Speed | 1/1 s To 1/100000 s |
| Day Night | IR Cut Filter |
| Optical Zoom | 32x |
| Digital Zoom | 16x |
| Slow Shutter | Yes |
| Focal Length | 4.25 To 136 mm |
| Field Of View | Horizontal 61.2° To 2.5° Vertical 36.4° To 1.4° Diagonal 68.5° To 2.8° |
| Focus Mode | Auto Rapid Focus Semi Auto Manual |
| Aperture | Maximum F1.6 |
| Zoom Speed | Approx. 3 Seconds |
| Supplement Light | IR White Light |
| Supplement Light Range | White Light Up To 100 m IR Up To 150 m |
| Pan Range | 360° |
| Tilt Range | -15° To 90° Auto Flip |
| Pan Speed | 0.1° To 160° Per Second Preset Speed 240° Per Second |
| Tilt Speed | 0.1° To 120° Per Second Preset Speed 200° Per Second |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 Patrols Up To 32 Presets Each |
| Pattern Scan | 4 Pattern Scans |
| Park Action | Auto Scan Frame Scan Random Scan Patrol Scan Pattern Scan Panorama Scan Tilt Scan Preset |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset Pattern Scan Patrol Scan Auto Scan Tilt Scan Random Scan Frame Scan Panorama Scan |
| Power Off Memory | Yes |
| Main Stream | 1920 × 1080 1280 × 960 1280 × 720 Up To 30 FPS |
| Sub Stream | 704 × 576 640 × 480 352 × 288 Up To 30 FPS |
| Third Stream | 1920 × 1080 1280 × 960 1280 × 720 704 × 576 640 × 480 352 × 288 Up To 30 FPS |
| Video Compression | H.265 H.264 MJPEG |
| Video Bit Rate | 32 Kbps To 16384 Kbps |
| H.264 Profile | Baseline Main High Profile |
| H.265 Profile | Main Profile |
| Scalable Video Coding | H.264 And H.265 Encoding |
| Region Of Interest | 8 Fixed Regions Per Stream |
| Audio Compression | G.711u G.711a G.722.1 G.726 MP2L2 PCM AAC MP3 |
| Audio Bit Rate | 16 Kbps To 160 Kbps Depending On Codec |
| Audio Sampling Rate | 8 kHz 16 kHz 32 kHz 48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP IP HTTP HTTPS RTSP RTCP DHCP DNS FTP SMTP SNMP SSL TLS IPv4 IPv6 DDNS QoS UPnP SFTP WebSocket Bonjour |
| Simultaneous Live View | Up To 20 Channels |
| API | ONVIF Profile S Profile G Profile T Profile M SISTP OTAP |
| User Capacity | Up To 32 Users |
| Security | Password Protection HTTPS Encryption TLS 1.3 Watermark IP Address Filter Security Audit Log |
| Network Storage | NAS NFS SMB CIFS ANR |
| Browser Support | IE11 Chrome 80 Plus Firefox 80 Plus Safari 13 Plus Edge 89 Plus |
| Image Settings | White Balance Brightness Contrast Saturation Sharpness |
| Day Night Switch | Day Night Auto Schedule |
| Wide Dynamic Range | 120 dB WDR |
| Signal To Noise Ratio | Greater Than 52 dB |
| Image Stabilization | Electronic Image Stabilization EIS |
| Image Enhancement | BLC HLC 3D DNR |
| Privacy Mask | 24 Programmable Polygon Privacy Masks |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Ethernet Interface | 1 RJ45 10M 100M Self Adaptive Ethernet Port |
| On Board Storage | Micro SD Micro SDHC Micro SDXC Up To 512 GB |
| Built In Speaker | 1 Speaker Effective Distance Up To 30 m |
| Audio Interface | 1 Audio Input Line In 1 Audio Output Line Out |
| Alarm Interface | 2 Inputs 1 Output |
| Reset | Yes |
| Basic Events | Motion Detection Video Tampering Alarm Input Output Network Exception Illegal Login HDD Error Audio Exception |
| Smart Events | Fast Moving Detection Unattended Baggage Region Entrance People Gathering Region Exit Line Crossing Intrusion Loitering Parking Object Removal |
| Linkage Action | FTP NAS Memory Card Email Alarm Recording Audible Warning White Light PTZ Actions |
| Smart Tracking | Manual Tracking Auto Tracking |
| Perimeter Protection | Human And Vehicle Line Crossing Region Entrance Intrusion Region Exit Detection |
| Power Supply | 36 VDC 1.33 A Hi PoE 42.5 To 57 V IEEE 802.3bt Maximum 42 W |
| Dimensions | Ø220 × 360.2 mm |
| Weight | Approx. 5.5 kg |
| Material | ADC12 |
| Operating Temperature | -30°C To 65°C |
| Operating Humidity | Up To 90 Percent Non Condensing |
| Demist | Yes |
| Protection | IP67 IK10 |

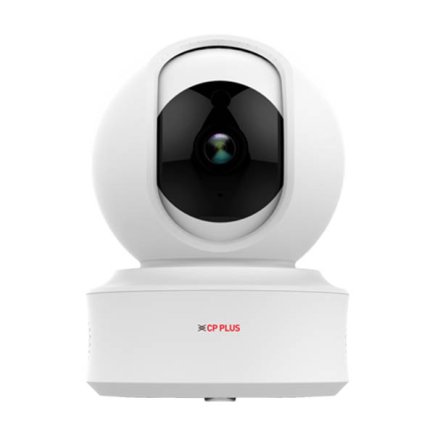

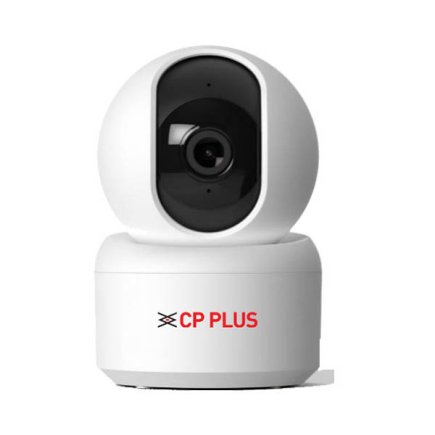

| Model | CP-E44Q |
| Camera Type | 4MP WiFi PT Camera |
| Image Sensor | 1/2.9 Inch 4MP CMOS Image Sensor (0.8758 cm) |
| Resolution | 4MP (2560 × 1440) |
| Minimum Illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm Fixed Lens |
| Maximum Aperture | F1.6 |
| Angle Of View | Diagonal 108°, Horizontal 91.3°, Vertical 49° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | 39 dB or Higher |
| Exposure Control | Auto AWB, AGC, BLC |
| Picture Adjustment | Auto Contrast, Brightness, Saturation |
| Electronic Shutter | 1/50 s (1/60 s) to 1/100000 s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Human Detection | Supported |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Alarm Notification | Push Notification Supported |
| Echo Cancellation | Supported |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Audio Compression | G.711A |
| Pan Tilt Angle | Pan 355°, Tilt 66° |
| IR LEDs | 6 IR LEDs |
| IR Distance | Up To 15 Meter |
| IR Cut Filter | Auto |
| Wireless Standard | WiFi IEEE 802.11 b/g/n |
| Wireless Frequency | 2.4 GHz |
| WiFi | Supported |
| Works With Alexa | Supported |
| Works With Google Home | Supported |
| Mobile App | ezyKam Plus |
| Smartphone Support | Android and iOS |
| Storage | Micro SD Card Up To 256 GB |
| Application | Indoor |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A USB Type C |
| Power Consumption | Maximum 5 W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% Non Condensing |
| Dimensions | 73 × 73 × 119 mm |
| Casing | ABS Plastic |
| Weight | 171.5 g |

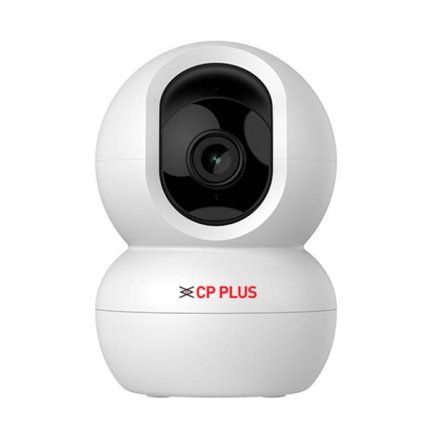

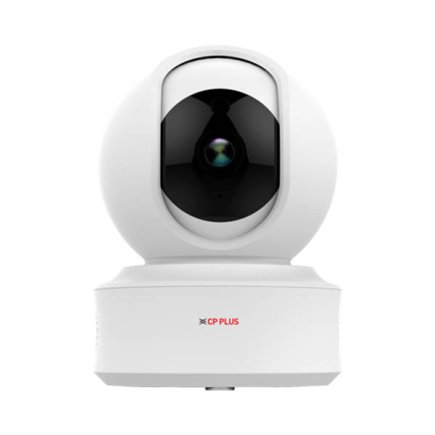

| Model | CP-E21Q |
| Camera Type | 2MP WiFi PT Camera |
| Image Sensor | 1/3.2 Inch 2MP PS CMOS Image Sensor (0.7937 cm) |
| Resolution | 2MP (1920 × 1080) |
| Minimum Illumination | Color 0.1 Lux, B/W 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm |
| Maximum Aperture | F2.0 |
| Video Compression | H.265 |
| Angle Of View | Diagonal 107°, Horizontal 89°, Vertical 48° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | 38.5 dB Or Higher |
| Exposure Control | Auto Adjust AWB, AGC, BLC |
| Picture Adjustment | Auto Contrast, Brightness And Saturation |
| Electronic Shutter | 1/50 s (1/60 s) To 1/100000 s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Human Body Detection | Supported |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Alarm Notification Push | Supported |
| Echo Cancellation | Supported |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Audio Compression | G.711A |
| Wireless Standard | WiFi 802.11 b g n |
| WiFi | Supported |
| Wireless Frequency | 2.4 GHz |
| Ethernet | Supported |
| IR LEDs | 6 IR LEDs |
| IR Distance | Up To 15 Meter |
| IR Cut Filter | Auto |
| Pan Tilt Angle | Pan 355°, Tilt 71° |
| Storage | Micro SD Card Up To 256 GB |
| Smartphone Support | Android And iOS |
| Works With Alexa | Supported |
| Works With Google Home | Supported |
| Mobile App | ezyKam Plus |
| Application | Indoor |
| Power Supply | DC 5V 1A |
| Power Consumption | Maximum 5 W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% Non Condensing |
| Certificates | ISO 9001 2015, ISO 20000 1 2018, CE, FCC, RoHS, BIS, WPC |
| Dimensions | 77 × 77 × 107 mm |
| Casing | ABS Plastic |
| Weight | 176 g |

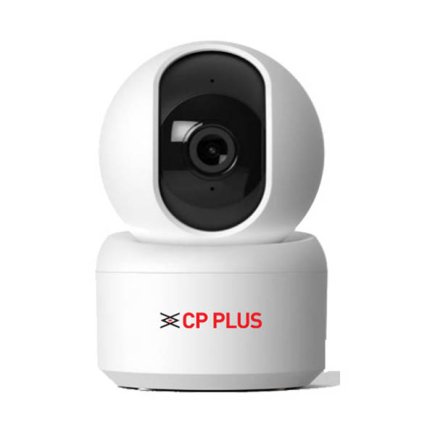

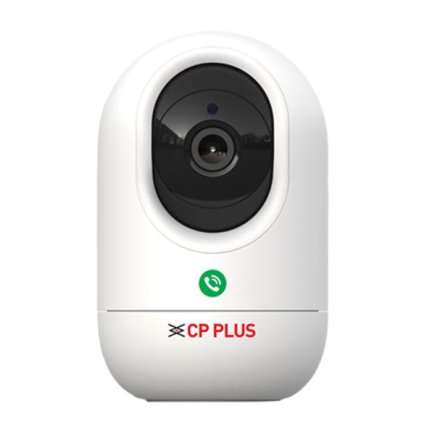

| Model | CP-E31Q |
| Camera Type | 3MP WiFi PT Camera |
| Image Sensor | 1/2.7 Inch 3MP PS CMOS Image Sensor (0.9407 cm) |
| Resolution | 3MP (2304 × 1296) |
| Minimum Illumination | Color 0.1 Lux, B/W 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm |
| Maximum Aperture | F2.0 |
| Video Compression | H.265 |
| Angle Of View | Diagonal 93.6°, Horizontal 72.2°, Vertical 53.1° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | 40.4 dB Or Higher |
| Exposure Control | Auto AWB, AGC, BLC |
| Picture Adjustment | Auto Contrast, Brightness And Saturation |
| Electronic Shutter | 1/50s (1/60s) To 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Human Detection | Supported |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Alarm Notification | Push Notification Supported |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Audio Compression | G.711A |
| Echo Cancellation | Supported |
| Wireless Standard | WiFi IEEE 802.11 b/g/n |
| WiFi Frequency | 2.4 GHz |
| WiFi | Supported |
| Ethernet | Supported |
| Pan Tilt Angle | Pan 355°, Tilt 71° |
| IR LEDs | 6 IR LEDs |
| IR Distance | Up To 15 Meter |
| IR Cut Filter | Auto |
| Smart Assistant Support | Works With Alexa And Google Home |
| Mobile App | ezyKam Plus |
| Supported Devices | Android And iOS |
| Storage | Micro SD Card Up To 256 GB |
| Application | Indoor Use |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A |
| Power Consumption | Maximum 5 W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95 Percent Non Condensing |
| Dimensions | 77 × 77 × 107 mm |
| Casing | ABS Plastic |
| Weight | 176 g |

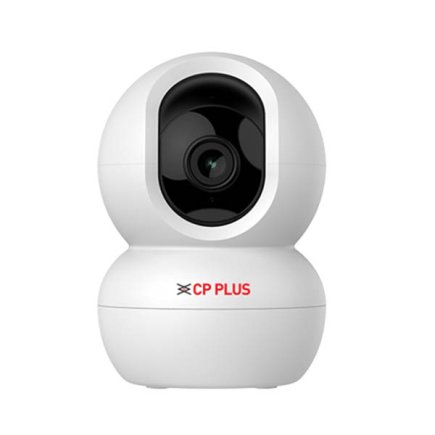

| Model | CP-E41Q |
| Camera Type | 4MP WiFi PT Camera |
| Image Sensor | 1/2.9 Inch 4MP PS CMOS Image Sensor (0.8758 cm) |
| Resolution | 4MP (2560 × 1440) |
| Minimum Illumination | Color 0.1 Lux, B/W 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm Fixed Lens |
| Maximum Aperture | F1.6 |
| Video Compression | H.265 |
| Angle Of View | Diagonal 108°, Horizontal 91.3°, Vertical 49° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | 39 dB Or Higher |
| Exposure Control | Auto Adjust AWB, AGC, BLC |
| Picture Adjustment | Auto Contrast, Brightness And Saturation |
| Electronic Shutter | 1/50s (1/60s) To 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Human Detection | Supported |
| Sound Detection | Supported |
| Alarm Notification | Push Notification Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Audio Compression | G.711A |
| Wireless Standard | WiFi 802.11 b g n |
| Wireless Frequency | 2.4 GHz |
| WiFi | Supported |
| Ethernet | Supported |
| Work With Alexa | Supported |
| Work With Google Home | Supported |
| IR LEDs | 6 IR LEDs |
| IR Distance | Up To 15 Meter |
| IR Cut Filter | Auto |
| Pan Tilt Angle | Pan 355°, Tilt 71° |
| Storage | Micro SD Card Up To 256 GB |
| Mobile App | ezyKam Plus |
| Smart Phone Support | Android And iOS |
| Application | Indoor |
| Certificates | ISO 9001 2015, ISO 20000 1 2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A |
| Power Consumption | Maximum 5 W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95 Percent Non Condensing |
| Dimensions | 77 × 77 × 107 mm |
| Casing | ABS Plastic |
| Weight | 176 g |

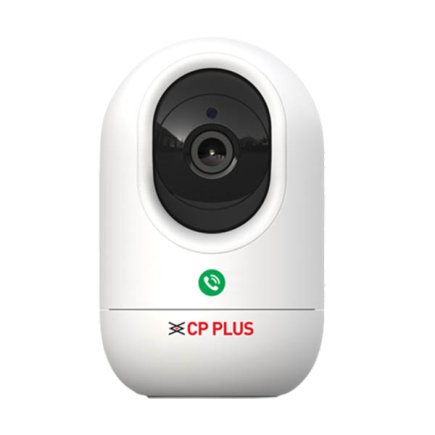

| Model | CP-E24Q |
| Camera Type | 2MP WiFi PT Camera |
| Image Sensor | 1/3.2 Inch 2MP PS CMOS Image Sensor (0.7937 cm) |
| Resolution | 2MP (1920 × 1080) |
| Minimum Illumination | Color 0.1 Lux, B/W 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm Fixed Lens |
| Maximum Aperture | F2.0 |
| Video Compression | H.265 |
| Angle Of View | Diagonal 107°, Horizontal 89°, Vertical 48° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | 38.5 dB Or Higher |
| Exposure Control | Auto AWB, AGC, BLC |
| Picture Adjustment | Auto Contrast, Brightness And Saturation |
| Electronic Shutter | 1/50 s (1/60 s) To 1/100000 s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Human Detection | Supported |
| Sound Detection | Supported |
| Alarm Notification | Push Notification Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Audio Compression | G.711A |
| Two Way Talk | Supported |
| Wireless Standard | WiFi 802.11 b/g/n |
| WiFi Frequency | 2.4 GHz |
| WiFi Support | Supported |
| IR LEDs | 6 IR LEDs |
| IR Distance | Up To 15 Meter |
| IR Cut Filter | Auto |
| Pan Tilt Angle | Pan 355°, Tilt 66° |
| Storage | Micro SD Card Up To 256 GB |
| Mobile App | ezyKam Plus |
| Smartphone Support | Android And iOS |
| Alexa Support | Supported |
| Google Home Support | Supported |
| Application | Indoor |
| Certificates | ISO 9001 2015, ISO 20000 1 2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A USB Type C |
| Power Consumption | Maximum 5 W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95 Percent Non Condensing |
| Dimensions | 73 × 73 × 119 mm |
| Casing | ABS Plastic |
| Weight | 171.5 g |

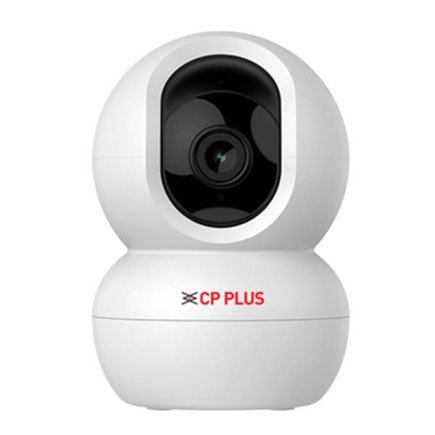

| Model | CP-E34Q |
| Camera Type | 3MP WiFi PT Camera |
| Image Sensor | 1/3 Inch or 1/2.7 Inch 3MP PS CMOS Image Sensor (0.84667 or 0.9407 cm) |
| Minimum Illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm Fixed Lens |
| Maximum Aperture | F2.0 |
| Video Compression | H.265 |
| Angle Of View | Diagonal: 93.6°, Horizontal: 72.2°, Vertical: 53.1° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | ≥40.4 dB |
| Exposure Conditions | Auto Adjust AWB, AGC, BLC |
| Picture Adjustment | Auto Adjust Contrast, Brightness, Saturation |
| Resolution | 3MP (2304 × 1296) |
| Electronic Shutter | 1/50s (1/60s) - 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Audio Compression | G.711A |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Human Body Detection | Supported |
| Alarm Notification Push | Supported |
| Wireless Standard | WiFi 802.11 b/g/n |
| WiFi Frequency | 2.4 GHz |
| IR Distance | Up To 15 Meter |
| IR LED | 6 IR LEDs |
| IR Cut Filter | Auto |
| Pan Tilt Angle | Pan 355°, Tilt 66° |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Smart Assistant Support | Works With Alexa And Google Home |
| Smart Phone Support | Android And iOS |
| Storage | Micro SD Card Up To 256GB |
| Mobile App | ezyKam+ |
| Application Environment | Indoor |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A USB Type C |
| Power Consumption | Maximum 5W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% Non Condensing |
| Dimensions | 73 mm × 73 mm × 119 mm |
| Casing | ABS Plastic |
| Weight | 171.5 g |

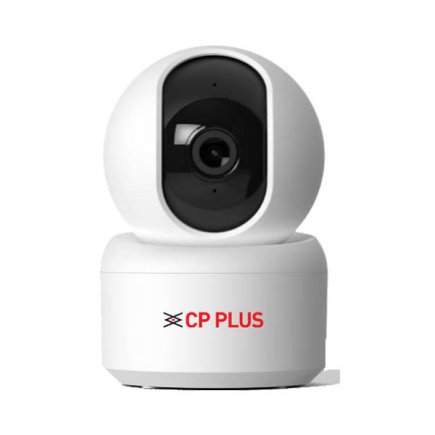

| Model | CP-E25Q |
| Camera Type | 2MP WiFi PT Camera |
| Image Sensor | 1/3.2 Inch 2MP PS CMOS Image Sensor (0.7937 cm) |
| Minimum Illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm |
| Maximum Aperture | F2.0 |
| Video Compression | H.265 |
| Angle Of View | Diagonal 107°, Horizontal 89°, Vertical 48° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | ≥38.5 dB |
| Exposure Conditions | Auto Adjust AWB, AGC, BLC |
| Picture Adjustment | Auto Adjust Contrast, Brightness, Saturation |
| Resolution | 2MP (1920 × 1080) |
| Electronic Shutter | 1/50s (1/60s) To 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Audio Compression | G.711A |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Human Body Detection | Supported |
| Alarm Notification Push | Supported |
| Wireless Standard | WiFi 802.11 b/g/n |
| WiFi Frequency | 2.4 GHz |
| IR LED | 4 IR LEDs |
| IR Distance | Up To 15 Meter |
| WiFi | Supported |
| Work With Alexa | Supported |
| Work With Google Home | Supported |
| IR Cut Filter | Auto |
| Pan Tilt Angle | Pan 355°, Tilt 59° |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Storage | Micro SD Card Up To 256GB |
| Mobile App | ezyKam+ |
| Smart Phone Support | Android And iOS |
| Application Environment | Indoor |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A (USB Type C) |
| Power Consumption | Maximum 5W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% Non Condensing |
| Dimensions | 72mm × 72mm × 109mm |
| Casing | ABS Plastic |
| Weight | 161 g |

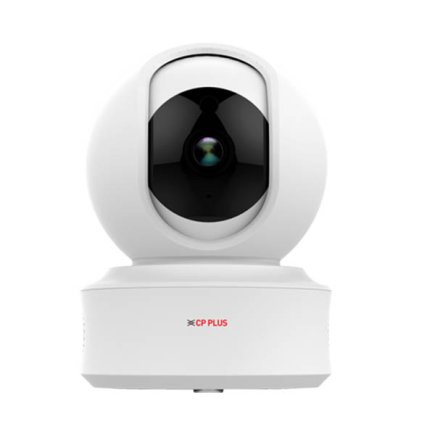

| Model | CP-E35Q |
| Camera Type | 3MP WiFi PT Camera |
| Image Sensor | 1/2.7 Inch 3MP PS CMOS Image Sensor (0.9407 cm) |
| Minimum Illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm |
| Maximum Aperture | F2.0 |
| Video Compression | H.265 |
| Angle Of View | Diagonal: 107°, Horizontal: 89°, Vertical: 48° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | ≥40.4 dB |
| Exposure Control | Auto Adjust AWB, AGC, BLC |
| Picture Adjustment | Auto Adjust Contrast, Brightness, Saturation |
| Resolution | 3MP (2304 × 1296) |
| Electronic Shutter | 1/50s (1/60s) To 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Human Body Detection | Supported |
| Audio Compression | G.711A |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Alarm Notification Push | Supported |
| IR LEDs | 4 Pieces IR LEDs |
| IR Distance | Up To 15 Meter |
| IR Cut Filter | Auto |
| Wireless Standard | WiFi 802.11 b/g/n |
| WiFi Frequency | 2.4 GHz |
| WiFi Support | Supported |
| Alexa Support | Works With Alexa |
| Google Home Support | Works With Google Home |
| Pan Tilt Angle | Pan: 355°, Tilt: 59° |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Smart Phone Support | Android And iOS |
| Application Environment | Indoor |
| Storage | Micro SD Card Up To 256GB |
| Mobile Application | ezyKam+ |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC |
| Power Consumption | Maximum 5W |
| Power Supply | DC 5V 1A USB Type C |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% RH Non Condensing |
| Dimensions | 72mm × 72mm × 109mm |
| Casing | ABS Plastic |
| Weight | 161g |

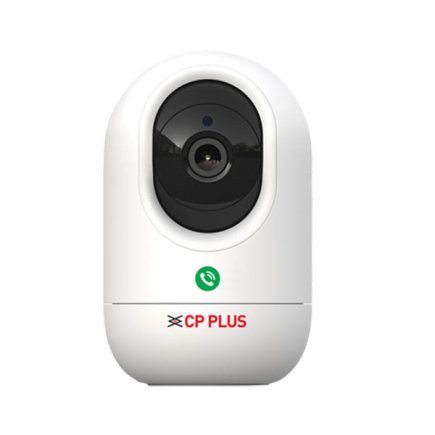

| Model | CP-E45Q |
| Camera Type | 4MP WiFi PT Camera |
| Image Sensor | 1/2.9 Inch 4MP PS CMOS Image Sensor (0.8758 cm) |
| Minimum Illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm |
| Maximum Aperture | F1.6 |
| Video Compression | H.265 |
| Angle Of View | Diagonal: 108°, Horizontal: 91.3°, Vertical: 49° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | ≥39 dB |
| Exposure Conditions | Auto Adjust AWB, AGC, BLC |
| Picture Adjustment | Auto Adjust Contrast, Brightness, Saturation |
| Resolution | 4MP (2560 × 1440) |
| Electronic Shutter | 1/50s (1/60s) To 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Audio Compression | G.711A |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Human Body Detection | Supported |
| Alarm Notification Push | Supported |
| Wireless Standard | WiFi 802.11 b/g/n |
| WiFi Frequency | 2.4 GHz |
| WiFi | Supported |
| IR Distance | Up To 15 Meter |
| IR LED | 4 Pieces IR LEDs |
| IR Cut Filter | Auto |
| Pan Tilt Angle | Pan: 355°, Tilt: 59° |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Smart Home Support | Works With Alexa And Google Home |
| Smart Phone Support | Android And iOS |
| Storage | Micro SD Card Up To 256GB |
| Application Environment | Indoor |
| Mobile App | ezyKam+ |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A USB Type C |
| Power Consumption | Maximum 5W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% Non Condensing |
| Dimensions | 72 mm × 72 mm × 109 mm |
| Casing | ABS Plastic |
| Weight | 161 g |
| Model | CP-E28Q |
| Camera Type | 2MP WiFi PT Camera |
| Image Sensor | 1/3.2 Inch 2MP PS CMOS Image Sensor (0.7937 cm) |
| Minimum Illumination | Color 0.1 Lux, B/W 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm |
| Maximum Aperture | F2.0 |
| Video Compression | H.265 |
| Angle Of View | Diagonal 107°, Horizontal 89°, Vertical 48° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | ≥38.5 dB |
| Exposure Conditions | Auto Adjust AWB, AGC, BLC |
| Picture Adjustment | Auto Adjust Contrast, Brightness, Saturation |
| Resolution | 2MP 1920 × 1080 |
| Electronic Shutter | 1/50s (1/60s) To 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Human Body Detection | Supported |
| Audio Compression | G.711A |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Alarm Notification Push | Supported |
| Wireless Standard | WiFi 802.11 b/g/n |
| IR Distance | Up To 15 Meter |
| IR LED | 6 IR LEDs |
| WiFi | Supported |
| Alexa Support | Works With Alexa |
| Google Home Support | Works With Google Home |
| IR Cut Filter | Auto |
| Smart Phone Support | Android And iOS |
| Pan Tilt Angle | Pan 355°, Tilt 75° |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Wireless Frequency | 2.4 GHz |
| Application Environment | Indoor |
| Storage | Micro SD Card Up To 256GB |
| Mobile App | ezyKam+ |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC |
| Power Consumption | Maximum 5W |
| Power Supply | DC 5V 1A USB Type C |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% Non Condensing |
| Dimensions | 76 mm × 76 mm × 111 mm |
| Casing | ABS Plastic |
| Weight | 186 g |
| Model | CP-E38Q |
| Camera Type | 3MP WiFi PT Camera |
| Image Sensor | 1/2.7 Inch 3MP PS CMOS Image Sensor (0.9407 cm) |
| Minimum Illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm Fixed Lens |
| Maximum Aperture | F2.0 |
| Video Compression | H.265 |
| Angle Of View | Diagonal 107°, Horizontal 89°, Vertical 48° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | ≥40.4 dB |
| Exposure Conditions | Auto Adjust AWB, AGC, BLC |
| Picture Adjustment | Auto Adjust Contrast, Brightness, Saturation |
| Resolution | 3MP (2304 × 1296) |
| Electronic Shutter | 1/50s (1/60s) To 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Audio Compression | G.711A |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Human Body Detection | Supported |
| Alarm Notification Push | Supported |
| Wireless Standard | WiFi 802.11 b/g/n |
| WiFi Frequency | 2.4 GHz |
| IR Distance | Up To 15 Meter |
| IR LED | 6 IR LEDs |
| IR Cut Filter | Auto |
| Pan Tilt Angle | Pan 355°, Tilt 75° |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Smart Assistant Support | Works With Alexa And Google Home |
| Smart Phone Support | Android And iOS |
| Storage | Micro SD Card Up To 256GB |
| Application Environment | Indoor |
| Mobile App | ezyKam+ |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A USB Type C |
| Power Consumption | Maximum 5W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% Non Condensing |
| Dimensions | 76mm × 76mm × 111mm |
| Casing | ABS Plastic |
| Weight | 186g |
| Model | CP-E48Q |
| Camera Type | 4MP WiFi PT Camera |
| Image Sensor | 1/2.9 Inch 4MP PS CMOS Image Sensor (0.8758 cm) |
| Minimum Illumination | Color 0.1 Lux, B/W 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm |
| Maximum Aperture | F1.6 |
| Video Compression | H.265 |
| Angle Of View | Diagonal 108°, Horizontal 91.3°, Vertical 49° |
| Back Light Compensation | DWDR |
| Signal To Noise Ratio | Greater Than Or Equal To 39 dB |
| Exposure Conditions | Auto Adjust AWB, AGC, BLC |
| Picture Adjustment | Auto Adjust Contrast, Brightness, Saturation |
| Resolution | 4MP (2560 × 1440) |
| Electronic Shutter | 1/50s (1/60s) To 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Audio Compression | G.711A |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Human Body Detection | Supported |
| Alarm Notification Push | Supported |
| Wireless Standard | WiFi 802.11 b/g/n |
| WiFi Frequency | 2.4 GHz |
| IR Distance | Up To 15 Meter |
| IR LED | 6 IR LEDs |
| IR Cut Filter | Auto |
| WiFi | Supported |
| Alexa Support | Supported |
| Google Home Support | Supported |
| Smart Phone Support | Android And iOS |
| Pan Tilt Angle | Pan 355°, Tilt 75° |
| Built In Speaker | Supported |
| Audio | Built In Microphone |
| Two Way Talk | Supported |
| Storage | Micro SD Card Up To 256GB |
| Mobile App | ezyKam+ |
| Application Environment | Indoor |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A USB Type C |
| Power Consumption | Maximum 5W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% Non Condensing |
| Dimensions | 76mm × 76mm × 111mm |
| Casing | ABS Plastic |
| Weight | 186g |

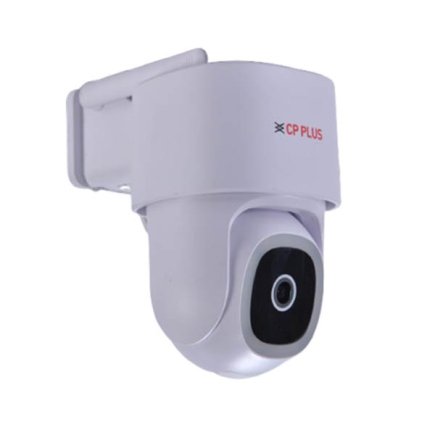

| Model | CP-Z43Q |
| Camera Type | 4MP WiFi Full Color PT Camera |
| Image Sensor | 1/2.9 Inch 4MP CMOS Image Sensor (0.8758 cm) |
| Resolution | 4MP (2560 × 1440) |
| Minimum Illumination | Color 0.1 Lux, Black And White 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm Fixed Lens |
| Maximum Aperture | F1.6 |
| Signal To Noise Ratio | 39 dB Or Higher |
| Back Light Compensation | DWDR |
| Angle Of View | Diagonal 108°, Horizontal 91.3°, Vertical 49° |
| Video Compression | H.265 |
| Picture Adjustment | Auto Contrast, Brightness And Saturation |
| Exposure Control | Auto AWB, AGC And BLC |
| Electronic Shutter | 1/50 s (1/60 s) To 1/100000 s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Human Detection | Supported |
| Full Color Night Vision | Supported |
| IR LEDs | 8 IR LEDs |
| IR Distance | Up To 15 Meter |
| White LEDs | 8 LEDs |
| White LED Distance | 8 To 10 Meter |
| Sound Detection | Supported |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Alarm Notification | Push Notification Supported |
| Audio | Built In Microphone |
| Built In Speaker | Supported |
| Two Way Talk | Supported |
| Audio Compression | G.711A |
| Pan Tilt Angle | Pan 345°, Tilt 70° |
| Wireless Standard | WiFi 802.11 b g n |
| Wireless Frequency | 2.4 GHz |
| WiFi | Supported |
| Ethernet | Supported |
| IR Cut Filter | Auto |
| Works With Alexa | Supported |
| Works With Google Home | Supported |
| Mobile App | ezyKam Plus |
| Smartphone Support | Android And iOS |
| Storage | Micro SD Card Up To 256 GB |
| Application | Outdoor |
| Certificates | ISO 9001 2015, ISO 20000 1 2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A USB Type A |
| Power Consumption | Maximum 5 W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95 Percent Non Condensing |
| Weatherproof Rating | IP65 |
| Dimensions | 155 × 100 × 143 mm |
| Casing | ABS Plastic |
| Weight | 377 g |

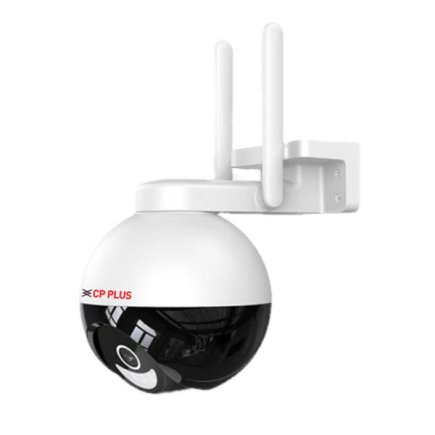

| Model | CP-Z45Q |
| Camera Type | 4MP WiFi Full Color PT Camera |
| Image Sensor | 1/2.9 Inch 4MP CMOS Image Sensor (0.8758 cm) |
| Resolution | 4MP (2560 × 1440) |
| Minimum Illumination | Color 0.1 Lux, B/W 0.01 Lux |
| Frame Rate | 20 FPS |
| Lens | 4 mm Fixed Lens |
| Maximum Aperture | F1.6 |
| Signal To Noise Ratio | 39 dB Or Higher |
| Back Light Compensation | DWDR |
| Angle Of View | Diagonal 108°, Horizontal 91.3°, Vertical 49° |
| Video Compression | H.265 |
| Picture Adjustment | Auto Contrast, Brightness And Saturation Adjustment |
| Exposure Control | Auto AWB, AGC And BLC |
| Electronic Shutter | 1/50s (1/60s) To 1/100000s |
| Noise Reduction | 3D DNR |
| Motion Detection | Supported |
| Motion Tracking | Supported |
| Audio Compression | G.711A |
| IR LEDs | 4 IR LEDs |
| IR Distance | Up To 15 Meter |
| White LEDs | 12 LEDs |
| White LED Distance | 8 To 10 Meter |
| Built In Siren | Supported |
| Echo Cancellation | Supported |
| Human Detection | Supported |
| Alarm Notification | Push Notification Supported |
| Full Color Night Vision | Supported |
| Wireless Standard | WiFi 802.11 b g n |
| WiFi | Supported |
| IR Cut Filter | Auto |
| Alexa Support | Supported |
| Google Home Support | Supported |
| Mobile Platform | Android And iOS |
| Pan Tilt Angle | Pan 324°, Tilt 96° |
| Sound Detection | Supported |
| Audio | Built In Microphone |
| Speaker | Built In Speaker |
| Two Way Audio | Supported |
| Wireless Frequency | 2.4 GHz |
| Ethernet | Supported |
| Storage | Micro SD Card Up To 256 GB |
| Application | Outdoor |
| Mobile App | ezyKam Plus |
| Weatherproof Rating | IP65 |
| Certificates | ISO 9001 2015, ISO 20000 1 2018, CE, FCC, RoHS, BIS, WPC |
| Power Supply | DC 5V 1A USB Type A |
| Power Consumption | Maximum 5W |
| Operating Temperature | -20°C To 60°C |
| Operating Humidity | Less Than 95% Non Condensing |
| Dimensions | 155 × 100 × 145 mm |
| Casing | ABS Plastic |
| Weight | 498 g |
When someone wants to launch their own camera brand or supply white-label gear, Mahajan Enterprises helps make the hardware side of things easy to manage. Getting hold of good OEM CCTV Camera Dealers in Delhi, India, gives local security businesses and installers the freedom to put their own logo on the shell, flash custom software, or pick specific lens sizes. Most folks going this route just want clean, unbranded boards and casings that don't lock them into expensive retail names, making it much easier to build a decent local reputation and set realistic prices for their customers.
When you sit down with a local electrician or talk to shop owners across Delhi about putting up security cameras, CP Plus is almost always the brand people suggest first. At Mahajan Enterprises, we help buyers sort through all the options to find a setup that fits their daily space—whether that is a small grocery shop in Karol Bagh, a quiet residential home, or a busy office floor in Nehru Place. Choosing a CCTV camera from the Top CP Plus CCTV Camera Dealers in Delhi, India, makes a lot of practical sense because the gear is tough, the mobile app links up without any fuss, and finding a local installer who knows how to fix or wire them takes almost no effort at all.
Mahajan Enterprises keeps crates of bullet and dome units stacked right on our Delhi warehouse floor so installers can grab hardware and head straight out to the job. When you are fitting out a busy storefront, an open yard, or an office hallway, mounting a camera from the Top Hikvision CCTV Camera Dealers in Delhi, India, gives the owner a sharp, practical view of every doorway. These cameras handle harsh sunlight and dark corners without washing out the picture, using built-in infrared lights to keep watch after the shop lights go off at night. Putting up solid lens units gives clients steady, high-definition footage they can actually read if something happens on site.
When someone needs clear video monitoring around a shop, office, or home, Mahajan Enterprises helps work out practical setups that just work. Getting a straightforward and Top HD CCTV Camera Dealers in Delhi, India, usually comes down to picking a lens that captures readable detail through everyday glare, dust, or dim evening light. Most people just want crisp playback so they can actually recognise a face or read a vehicle number if they ever need to check the recordings. Choosing a clean, simple resolution keeps daily monitoring easy without making the whole setup overly complex.
When setting up a modern network surveillance layout, Mahajan Enterprises helps clients figure out flexible setups that connect straight into local network cabling. Buying from Top IP CCTV Camera Dealers in Delhi, India, is a great idea if you want clear digital videos that you can monitor remotely using a web browser or a phone app. Unlike running large coax cables throughout the place where you want to install the cameras, digital network connections allow you to use the internet router and the switches already installed on the premises. After a very quick review of your bandwidth and network cabling, choosing an IP network camera becomes an easy and relaxing affair.
Mahajan Enterprises keeps compact wireless units ready on our Delhi warehouse shelves so installers can grab gear and head right out to the site. When you need to monitor a shop, office, or residential space without tearing up walls to lay down long data cables, mounting a camera from the Top Wifi CCTV Camera Dealers in Delhi, India, gives you a fast, hassle-free security setup. These cameras hook straight into local Wi-Fi networks, streaming high-definition video feeds directly to phones or central recording screens. Using solid wireless hardware saves time on site, cuts out messy wiring, and keeps your property covered with clear, steady video footage.
Mahajan Enterprises keeps compact motorized dome units sitting on our Delhi workshop floor so local technicians can load up their trucks and get straight to the job. When you are fitting out indoor spaces like hotel lobbies, shopping counters, or office corridors, putting up a camera from the Top PTZ CCTV Dome Camera Dealers in Delhi, India, gives you wide viewing coverage without mounting a bulky, intrusive box on the ceiling. The dark tinted bubble hides which direction the lens is facing, making it tough for anyone to guess where the camera is looking. Smooth internal motors let security staff pan, tilt, and zoom across open floors to catch sharp video details on the fly.
