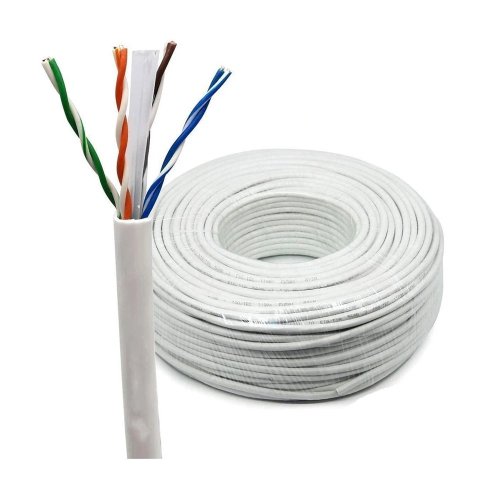

| Model | CP-EUT-6TGL23-100 |
| Product Type | Cat6 24AWG UTP LAN Cable |
| Conductor | Solid Bare Electrolytic Grade Copper |
| Conductor Size | 24 AWG |
| Insulation | High Density Polyethylene HDPE |
| Pair Construction | Two Insulated Conductors Twisted Together |
| Separator | Cross Separator Between Each Pair |
| Separator Material | Polyethylene PVC |
| Outer Sheath | FR PVC |
| Sheath Color | Grey |
| Approximate Outer Diameter | 0.5 mm ± 0.1 mm |
| Sheath Thickness | 0.48 mm ± 0.05 mm |
| Rip Cord | Yes |
| Sequential Marking | Every Meter |
| Characteristic Impedance | 100 ± 15 Ohm |
| Impedance | 100 ± 15 Percent Ohm |
| Resistance Unbalance | Maximum 5 Percent |
| Conductor Resistance | Maximum 9.38 Per 100 Meter |
| Mutual Capacitance | Less Than 5 nF Per 100 Meter |
| Capacitance Unbalance | 330 pF Per 100 Meter |
| Nominal Velocity Of Propagation | 69 Percent |
| Delay Skew | Less Than 45 ns |
| Bending Radius | Less Than 4 Times Cable Diameter At Minus 20 Degree Celsius |
| Pulling Force | 11.5 kg |
| Cable Length | 100 Meter |
| Operating Temperature | Minus 15 Degree Celsius To Plus 60 Degree Celsius |
| Storage Temperature | 0 Degree Celsius To 50 Degree Celsius |
| Packing | 100 Meter Roll |

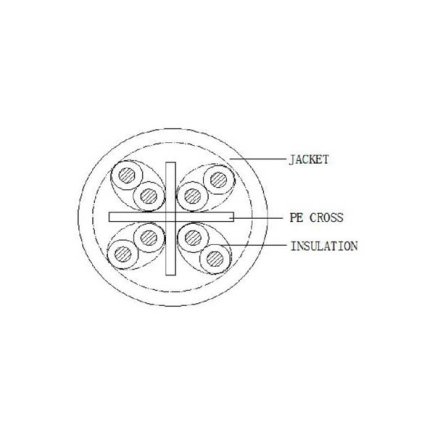

| Model | CP-FUT-6TSRH-100 |
| Product Type | Cat6 Four Pair UTP Cable |
| Conductor Size | 1 x 0.50 ± 0.02 mm 24 AWG |
| Conductor Material | CCA |
| Number Of Conductors | 8 Core |
| Conductor Diameter | 0.50 mm |
| Insulation Material | HDPE |
| Insulation Diameter | 0.92 ± 0.05 mm |
| Insulation Thickness | 0.23 mm |
| Cable Filler | Cross Separator |
| Filler Material | Natural PE |
| Jacket Material | HDPE |
| Jacket Diameter | 6.0 ± 0.20 mm |
| Jacket Thickness | 0.50 mm Reference |
| Color | Gray |
| Cable Length | 100 Meter |
| Insulation Impedance | HDPE DC 500V 50 Mega Ohm Per Kilometer PVC DC 500V 5 Mega Ohm Per Kilometer Minimum At 20 Degree Celsius |
| Dielectric Strength | AC 500V For 1 Second Minimum |
| Conductor Resistance | 24 AWG 250 Ohm Per Kilometer Maximum At 20 Degree Celsius |

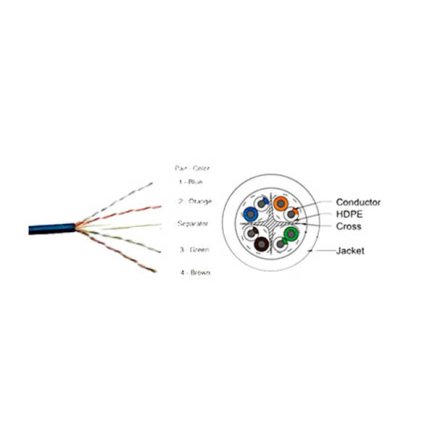

| Model | CP-EUT-6TSRD-100 |
| Cable Type | Cat6 Four Pair UTP Cable |
| Conductor Material | CCA |
| Nominal Conductor Diameter | 0.50 mm |
| Number Of Strands | 1 Nominal |
| Insulation Material | HDPE |
| Insulation Diameter | 0.90 mm Plus Or Minus 0.03 mm |
| Insulation Thickness | 0.20 mm Nominal Plus Or Minus 0.03 mm |
| Cabling Material | Polyethylene |
| Jacket Material | PVC |
| Outer Jacket Material | Polyethylene |
| Outer Diameter | 6.60 mm Plus Or Minus 0.03 mm |
| Outer Jacket Thickness | 0.60 mm Plus Or Minus 0.05 mm |
| Rip Cord | Nylon |
| Pair Color | Blue White Blue Green White Green Brown White Brown |
| Jacket Color | Black |
| Sheath Color | Natural |
| Dielectric Strength | Minimum 12.50 N Per Square mm |
| Tensile Strength | Minimum 17.50 N Per Square mm |
| Elongation | Minimum 300 Percent |
| PVC Jacket Elongation | Minimum 150 Percent |
| Cable Length | 100 Meter |
| Cable Weight | 11.2 kg Plus Or Minus 0.2 kg |
