16 Channel PoE Switch

Top 16 Channel PoE Switch Dealers in Delhi, India

When you are setting up security cameras or network gear for a full floor, a multi-story showroom, or a large warehouse, chaining multiple small switches together just creates a mess of wires and points of failure. Moving up to a POE Switch gives you a single rackmount unit that handles up to sixteen IP cameras, access points, or VoIP phones over simple network cables. At Mahajan Enterprises, we, as the Top 16 Channel PoE Switch Dealers in Delhi, India, keep dependable 16-port switches built for heavy daily work. They deliver steady power and data across every line, clear out power strip clutter in your server rack, and make managing your central network setup straightforward when checking lines later.

Wholesale 16 Port POE Switch Suppliers in Delhi

System integrators, network engineers, and security contractors handling mid-to-large site setups need steady stock and honest trade pricing. Buying through Wholesale 16 Port POE Switch Suppliers in Delhi gets you factory-boxed 16-port switches alongside rack ears, heavy power cords, and patch panels in one pickup.

  • Sourcing in full box lots brings down your per-port costs, keeping your site bids competitive for commercial projects.
  • Standard 19-inch rackmount chassis fit cleanly into standard server cabinets without taking up excess rack space.
  • Stashing a spare 16-port unit in your office store lets your team replace a damaged core switch on the same day.
  • Direct trade rates ensure site teams have enough room to keep a healthy margin on hardware supply.

16 Port POE Switch Authorised Dealers in Delhi

Powering sixteen cameras around the clock requires a heavy-duty internal power board that will not overheat during hot summer months or drop lines when night vision LEDs turn on across all channels. Sourcing your units through 16 Port POE Switch Authorised Dealers in Delhi ensures you get original factory stock with real manufacturer warranty cards inside the box.

  • Sealed factory boxes come with full brand warranty backing, making board repairs or unit swaps simple if a port takes an electrical hit.
  • High-wattage internal transformers handle 24/7 power loads smoothly without causing system reboots.
  • Port isolation settings prevent network crosstalk, keeping high-definition video streams clear across every connected camera.
  • Built-in surge protection guards sensitive IP camera hardware from sudden voltage spikes on long outdoor cable runs.

16 Port POE Switch Distributors in Delhi

When an installation team is mid-way through mounting sixteen cameras for a commercial client and finds a faulty switch, waiting days for regional freight stops the whole site handover. Established 16 Port POE Switch Distributors in Delhi keep physical inventory ready in local godowns for fast counter pickup. Your technician can collect a fresh switch in the morning, mount it into the server rack, test all video feeds, and finish the job on schedule.

16 Port POE Switch Retailers in Delhi

If you want to check port spacing, inspect the internal cooling fans, or verify total wattage specs in person before paying, visiting 16 Port POE Switch Retailers in Delhi is the most practical step forward. At Mahajan Enterprises, our staff can show you different 16-port setups, figure out power budgets for your camera layout and help you pick the right model for your network setup.

  • Counter checks allow you to inspect metal chassis construction, rear fan ventilation, and heavy power connections in person.
  • Our technical staff can help calculate total power draw so high-power infrared cameras do not brown out after dark.
  • Taking the sealed unit straight from our shop counter means you get hardware to site and running that afternoon.
  • Counter staff can walk you through uplink port choices—whether gigabit copper ports or dual SFP fiber slots—for long backbone runs to your NVR or main router.

Our 16 Channel PoE Switch Range

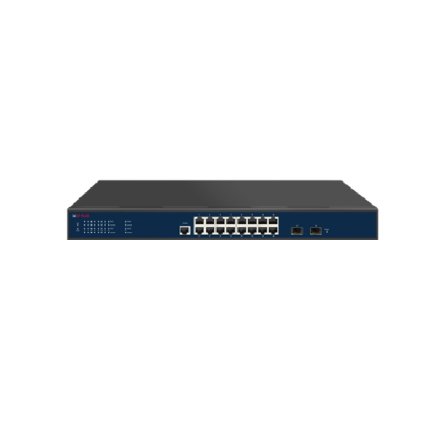

Network Managed PoE Switch with 16 Ports and SFP Uplinks

Model CP-ANW-GPM16F2-N24
Switch Type 16 Port Managed PoE Switch With 2 SFP Uplink Ports
Network Port 16 × 10/100/1000Mbps RJ45 Ports 2 × 1000Mbps SFP Fiber Ports 1 × Console Port
Network Medium 10Base T UTP Category 3 4 5 Cable Maximum 100 Meter 100Base TX UTP Category 5 5e Cable Maximum 100 Meter 1000Base T UTP Category 5e 6 Cable Maximum 100 Meter 1000Base X MMF SMF
Switching Capacity 36Gbps
Packet Forwarding Rate 26.784Mpps
Packet Buffer Memory 4.1Mbit
MAC Address Table 8K
Jumbo Frame 10KBytes
LED Indicator Electrical Port Indicator Optical Port Indicator Power Input Indicator System Running Indicator
Network Standard IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3az IEEE 802.3at IEEE 802.3af
PoE Standard IEEE 802.3af IEEE 802.3at
Forwarding Mode Store And Forward
PoE Pin Definition 1/2 Plus 3/6 Minus
PoE Power Budget 250W
Power Supply AC 100 To 240V 50/60Hz
Operating Temperature 0 Degree Celsius To 45 Degree Celsius
Operating Humidity 10 Percent To 90 Percent Non Condensing
Storage Temperature Minus 40 Degree Celsius To Plus 70 Degree Celsius
Storage Humidity 5 Percent To 95 Percent Non Condensing
Dimensions 440mm × 190mm × 44.5mm

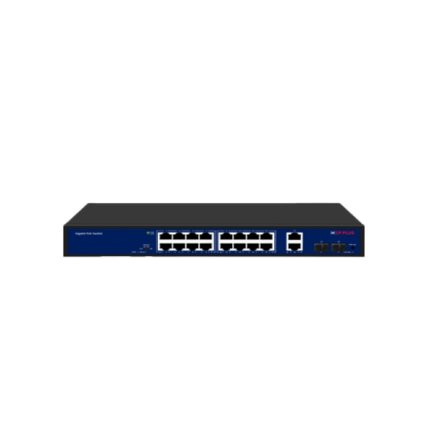

Enterprise 16 Channel PoE Switch with SFP and RJ45 Uplinks

Model CP-DNW-GPU16G2F2-20
Switch Type 16 Port Gigabit Unmanaged PoE Switch With 2 SFP Ports
Uplink Ports 2 Uplink Ports 1000Mbps RJ45 Ports And 2 Gigabit SFP Ports
Switch Capacity 40Gbps Full Duplex
Packet Forwarding Rate 29.76Mpps
Port 20
PoE Ports 16 10/100/1000Mbps RJ45 Ports Maximum 30W Output Of Single PoE Port
Transmission Distance 0 To 100 Meter At 1000Mbps Or Port 9 To 16 Maximum 250 Meter At 10Mbps Via Cat5e Or Above Under Extend Mode
MAC Address List 8K
PoE Feature All Ports Support MDI MDIX
PoE Standard IEEE802.3af IEEE802.3at
Packet Buffer 3Mb
Watchdog Support
Surge Protection Common Mode RJ45 Port 4KV Differential Mode RJ45 Port 2KV Common Mode Power Board 4KV Differential Mode Power Board 2KV
ESD Protection Air Discharge 8KV Contact Discharge 6KV
PWR Power Indicator Light On Powering Light Off No Power
Operating Mode Light Off Normal Mode
1 To 20 Indicator Link And Data Green Light Off Link Is Disconnected Green Light On Link Is Connected Green Light Flash Data Transmitting
1 To 16 Indicator PoE Yellow Light Off PoE Not Powering Yellow Light On PoE Powering
PoE Max Indicator Light Off Indicates PoE Power Usage Less Than 90 Percent Light Flash Indicates PoE Power Usage 90 Percent To 95 Percent Light On Indicates PoE Power Usage 95 Percent
PoE LED Button Used To Switch Whether 1 To 16 Indicator Lights Show Link Data Status Or PoE Status Default Indicates Link Data Status
Extend Switch OFF All Ports Communicate With Each Other Transmission Rate 10/100/1000Mbps Adaptive Watchdog Off ON 9 To 16 Ports Extend Network Cable Distance Up To 250 Meter Transmission Rate Becomes 10Mbps Watchdog On
Network Protocol And Standard IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3z IEEE802.3x
Forwarding Mode Store And Forward
Operating Temperature Minus 10 Degree Celsius To Plus 50 Degree Celsius
Operating Humidity 10 Percent To 95 Percent Non Condensing
Storage Temperature Minus 40 Degree Celsius To Plus 70 Degree Celsius
PoE Power Supply 1/2 Plus 3/6 Minus
PoE Power Budget 200W
Power Source Built In Power Supply Input 110 To 240V AC 50/60Hz
Power Consumption Less Than 5W
Dimension 320mm × 207mm × 44mm
Weight 1.78kg

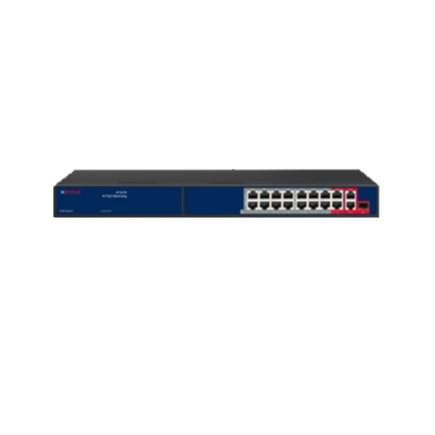

AI 16 Port PoE Switch With Gigabit Uplink And SFP Connectivity

Model CP-ANW-HP16G2F1-N30
Switch Type 16 Port PoE Plus 2 Gigabit Plus 1 SFP AI PoE Switch
PoE Ports 16 PoE Ports
Network Port PoE 1 To 15 10/100Mbps PoE Ports RJ45 PoE 16 10/100/1000Mbps PoE Port BT Port Compatible Uplink Ports RJ45 LAN 1 To 2 10/100/1000Mbps Uplink Ports RJ45 SFP 10/100/1000Mbps Uplink Port SFP
LED Light 16 × Link Act LEDs 1 × G1 LED 1 × G2 SFP2 LED 1 × PoE MAX LED 1 × Power LED
PoE Standard IEEE 802.3i 10BASE T IEEE 802.3u 100BASE TX IEEE 802.3ab 1000BASE T IEEE 802.3x Flow Control IEEE 802.3af IEEE 802.3at IEEE 802.3bt Power Over Ethernet
Switch Capacity 12.8Gbps
Input Voltage AC 180 To 240V
MAC Address List 8K
Lightning Protection 6KV Per IEC61000-4-5
Operating Temperature Minus 30 Degree Celsius To Plus 60 Degree Celsius
Operating Humidity 10 Percent To 90 Percent Non Condensing
Storage Temperature Minus 40 Degree Celsius To Plus 70 Degree Celsius
Dimension 430mm × 180mm × 45mm Length Width Height

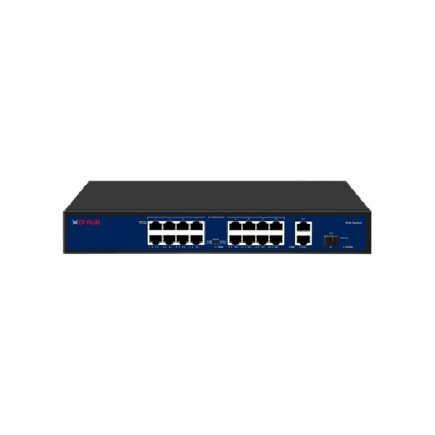

16 Port PoE Network Switch With Gigabit Uplink And SFP Support

Model CP-DNW-HPU16G2F1-20
Switch Type 19 Ports Switch With 16 PoE Ports And 2 Gigabit Plus 1 SFP Port
Uplink Ports 2 Ports 1000Mbps RJ45 Uplink Ports Plus 1 Port 1000Mbps SFP Port
Network Standard IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3z IEEE802.3x
Switch Capacity 92 Gbps Full Duplex
Switch Capacity 20Gbps
Packet Forwarding Rate IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3z IEEE802.3x
PoE Ports 16 10/100Mbps RJ45 Ports Maximum 30W Output Of Single PoE Port
Network Port 19
Transmission Distance 0 To 100 Meter At 1000Mbps Or Maximum 250 Meter At 10Mbps Via Cat5e Or Above Under Extend Mode
MAC Address List 4K
PoE Standard IEEE802.3af IEEE802.3at
Packet Buffer 1.5Mb
Backplane Bandwidth 5.6Gbps
CCTV Mode Downlink Ports Only Communicate With Uplink Ports Restrain Network Storm Under 2Mbps Extend Transmission Distance To 250 Meter Rate 10Mbps Downlink Ports
Data Package Cache 2.75Mb
Downlink Ports 8 × 10/100/1000Base T Ethernet Ports PoE
ESD Protection Contact Discharge 6KV Air Discharge 8KV Standard IEC61000-4-2
Ethernet Port Light 2 LEDs Yellow And Green On RJ45 Yellow Indicates PoE Green Indicates Link Act
Exchange Capacity Storage And Forwarding
Exchange Type Storage And Forwarding
LED Light Red Means Recording Yellow Means Audio Recording Green Means Standby
Lightning Protection 6KV Per IEC61000-4-5
PoE Power Budget 12W
PoE Power Supply 1/2 Plus 3/6 Minus
Port Parameter Rate 1 To 8 Downlink Ethernet Port 10/100Mbps 9 To 10 Uplink Ethernet Port 10/100/1000Mbps
Power Light 1 Red LED
Single Port Power Output And Voltage Single Port PoE Power Output 30W Voltage 54VDC
Surge Immunity 6KV
Surveillance Module Light 1 Green LED Green Indicates CCTV
Transmission Distance 100 Meter Maximum
Uplink Ports 1 × 10/100/1000Base T Ethernet Port And 1 × 1000Base X SFP Port
