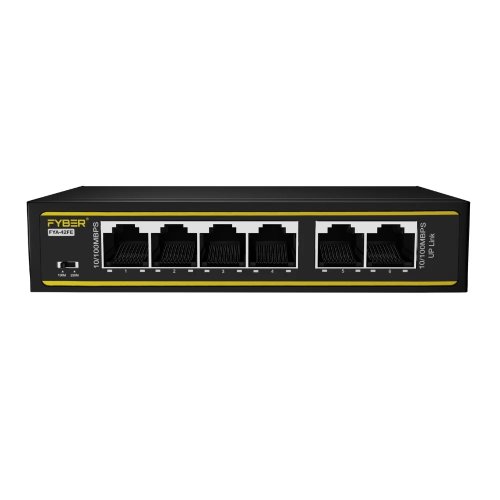

4 Channel PoE Switch

Top 4 Channel PoE Switch Dealers in Delhi, India

When you are setting up a small security setup for a shop, home office or small clinic, putting up massive 16-port switches is just a waste of space and money. A compact switch is the most practical pick when you only need to run three or four IP cameras or wireless access points. At Mahajan Enterprises, we, as 4 Channel PoE Switch Dealers in Delhi, India, stock small-footprint switches that handle daily power, and data supply over standard network cables without heating up or taking over your desk space. These compact units do away with bulky power adapters behind every camera, keep your wiring setup neat, and plug right into a basic wall socket or desktop corner without any fuss.

Wholesale 4 Port POE Switch Suppliers in Delhi

Local installers, small shop owners, and electrical contractors fitting out small properties need straightforward prices and quick hardware availability. Partnering with Wholesale 4 Port POE Switch Suppliers in Delhi gives site teams direct access to factory-boxed switches along with pre-made patch cords, RJ45 crimps, and small mounting brackets.

  • Sourcing in full box lots keeps your per-port cost down, making small installation estimates easy on customer pockets.
  • Small form factors allow technicians to tuck the switch inside small field boxes, PVC enclosures, or under cash counters.
  • Keeping extra 4-channel units in your toolkit lets you finish small job requests on the spot without running back to distributors.
  • Clear trade rates leave enough room for small field contractors to make a decent profit on hardware supply.

4 Port POE Switch Authorised Dealers in Delhi

Running security cameras around the clock requires a stable power board inside the switch so cameras do not reboot randomly at night. Getting your gear through 4 Port POE Switch Authorised Dealers in Delhi ensures you receive genuine factory stock complete with brand warranty cards inside the box.

  • Sealed factory boxes come with proper brand warranty cover, making unit swaps quick if a power port stops feeding electricity.
  • The internal power supplies are efficient and can handle continuous loads and the outer casing stays cool even during the hottest summer months.
  • Automatic device sensing delivers power only to camera ports while keeping standard data ports safe from electrical shorting.
  • Solid metal housings shield internal chips from nearby electrical noise generated by ceiling fans or heavy appliances.

4 Port POE Switch Distributors in Delhi

When a field technician is on site setting up a 4-camera system for a local grocery store and discovers a dead switch, waiting a couple of days for online shipping ruins the whole job handover. Established 4 Port POE Switch Distributors in Delhi maintain physical inventory in local godowns for fast counter pickup. Your technician can grab a fresh switch in the morning, complete the wiring, test the camera video feeds, and collect payment before the afternoon ends.

4 Port POE Switch Retailers in Delhi

If you want to check port distance spacing, inspect metal chassis build, or verify power adapter specs before making a payment, visiting 4 Port POE Switch Retailers in Delhi is the easiest way to go. At Mahajan Enterprises, our counter team can walk you through total wattage numbers, test camera link lights, and suggest the right plug-and-play model for your setup.

  • Counter checks allow you to inspect port metal contacts, outer casing ventilation, and power bricks in person.
  • Our staff can help you calculate overall camera power requirements so high-power night-vision cameras do not drop off line.
  • Buying right off the counter means you take the switch straight to site and get the cameras running in under an hour.
  • Technical staff can explain basic uplink port setups so connecting the switch to a local router or NVR stays completely hassle-free.

Our 4 Channel PoE Switch Range

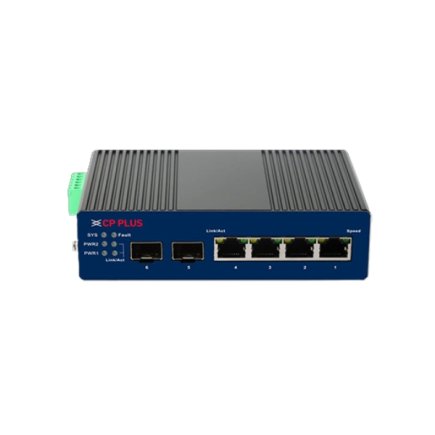

130W Managed PoE Switch with 4 Gigabit Ports and Dual SFP

Model CP-ANW-GPM4F2T-N12
Switch Type 4 Port Gigabit Managed PoE Switch With 2 SFP Ports
Network Port 4 × 10/100/1000Mbps RJ45 Ports 2 × 1000Mbps SFP Ports 1 × Console Port
Network Medium 10Base T UTP Category 3 4 5 Cable Maximum 100 Meter 100Base TX UTP Category 5 5e Cable Maximum 100 Meter 1000Base T UTP Category 5e 6 Cable Maximum 100 Meter
Switching Capacity 12Gbps
Packet Forwarding Rate 8.928Mpps
Packet Buffer Memory 4.1Mbit
MAC Address Table 8K
LED Indicator System Indicator SYS Green Network Indicator Link Yellow SFP Indicator L A Green Power Indicator Green
Network Standard IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3i IEEE 802.3z IEEE 802.3x
Ethernet Port Feature 10/100/1000BaseT Automatic Detection Full Half Duplex MDI MDI X Adaptive
SFP Port Characteristic Gigabit SFP Optical Fiber Interface Default Matching Optical Modules Optional Single Mode Multi Mode Single Fiber Double Fiber Optical Modules Purchased Separately
PoE Standard IEEE 802.3af IEEE 802.3at
Forwarding Mode Store And Forward Full Wire Speed
PoE Pin Definition 1/2 Plus 3/6 Minus
PoE Power Budget 130W
Redundant Power Input 2 Sets Of V Plus V Minus Redundant DC Power Interface 4 Pin Phoenix Terminal
Power Supply 48V DC
Power Consumption Standby Less Than 10W Without PoE Full Load Less Than 130W With PoE
Operating Temperature Minus 40 Degree Celsius To Plus 75 Degree Celsius
Operating Humidity 5 Percent To 90 Percent Non Condensing
Storage Temperature Minus 40 Degree Celsius To Plus 85 Degree Celsius
Storage Humidity 5 Percent To 95 Percent Non Condensing
Dimensions 135mm × 97.8mm × 38.1mm
Weight Less Than Or Equal To 1kg
Optical Cable Multi Mode 850nm 0 To 550 Meter Single Mode 1310nm 0 To 40 Kilometer 1550nm 0 To 120 Kilometer
PoE Functionality Input Voltage 48V Or Higher Supports PoE Input Voltage Below 48V Such As 12V Or 24V Operates As Non PoE

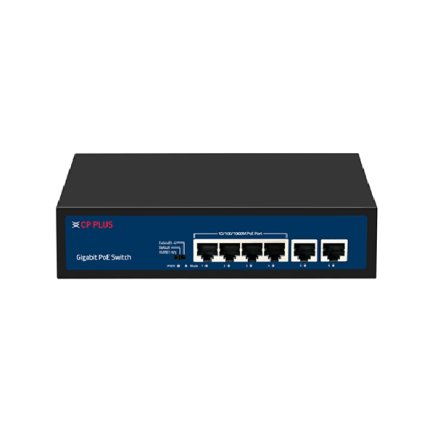

Gigabit Ethernet PoE Switch Supporting Watchdog and VLAN Mode

Model CP-DNW-GPU4G2-48C
Switch Type 4 Port Gigabit PoE With 2 Gigabit Uplink Unmanaged Switch
Uplink Ports 2 1000Mbps Ports Transmission Distance Default 0 To 100 Meter
Network Standard IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE802.3x
Switch Capacity 12 Gbps Full Duplex
Packet Forwarding Rate 1.488 Mpps Per Port
PoE Ports 4 1000Mbps RJ45 Ports Maximum 30W Output Of Single PoE Port Transmission Distance 0 To 100 Meter Or 0 To 250 Meter Selected By Switch
Power Indicator Light On Powering Light Off No Power
Network Port 6 Ports
Transmission Distance 0 To 100 Meter At 1000Mbps Or Port 3 To 4 Maximum 250 Meter At 10Mbps Via Cat5e Or Above Under Extend Mode
PoE Standard IEEE802.3af IEEE802.3at
Watchdog Support
PoE Power Supply 1/2 Plus 3/6 Minus
PoE Power Budget 48W
VLAN Support
Surge Protection Common Mode RJ45 Port 6KV Differential Mode RJ45 Port 2KV Common Mode Power Board 6KV Differential Mode Power Board 1KV
Forwarding Mode Store And Forward
MAC Address Table 2K
DIP Switch Indicator Green Light Off Normal Default Mode Green Light On VLAN Mode Green Light Flash Extend Mode
ESD Protection Air Discharge 8KV Contact Discharge 6KV
RJ45 ACT Indicator Green Light Off Link Is Disconnected Green Light On Link Is Connected Green Light Flash Data Transmitting
PoE Feature All Ports Support MDI MDIX
Power Source Input 100 To 240V AC 50/60Hz
Power Consumption Less Than 5W
Operating Temperature Minus 10 Degree Celsius To Plus 50 Degree Celsius
Operating Humidity 10 Percent To 95 Percent Non Condensing
Storage Temperature Minus 40 Degree Celsius To Plus 70 Degree Celsius
Dimensions 200mm × 118mm × 44mm
Weight 600 g

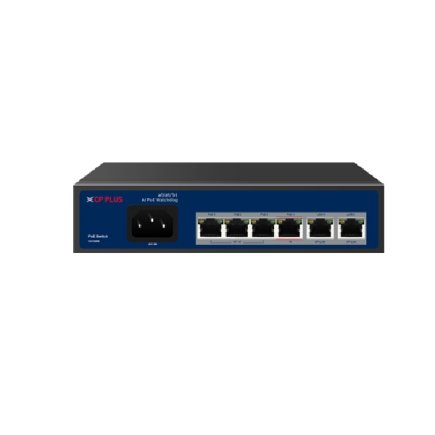

Compact 4 Channel PoE Plus Switch for IP Surveillance Systems

Model CP-ANW-HP4H2-N65
Switch Type 4 Port AI PoE Plus 2 Ethernet 10/100Mbps AI PoE Switch
Network Port PoE 1 To 3 10/100Mbps PoE Ports RJ45 PoE 4 10/100Mbps PoE Port BT Port Compatible Uplink Port RJ45 LAN 1 To 2 10/100Mbps Uplink Ports RJ45
Switch Capacity Bandwidth 1.2 Gbps
PoE Standard IEEE 802.3i 10BASE T IEEE 802.3u 100BASE TX IEEE 802.3x Flow Control IEEE 802.3af IEEE 802.3at IEEE 802.3bt Power Over Ethernet
Transmission Distance 100Mbps 10Mbps Adaptive Maximum 250 Meter
MAC Address List 2K
Lightning Protection 6KV Per IEC61000-4-5
PoE Power Budget 65W
Power Source AC 180 To 240V Total Less Than Or Equal To 65W
Working Temperature Minus 30 Degree Celsius To Plus 60 Degree Celsius
Humidity 10 Percent To 90 Percent Non Condensing
Storage Temperature Minus 40 Degree Celsius To Plus 70 Degree Celsius
Storage Humidity 5 Percent To 90 Percent Non Condensing
Dimension 187mm Length × 139mm Width × 43mm Height

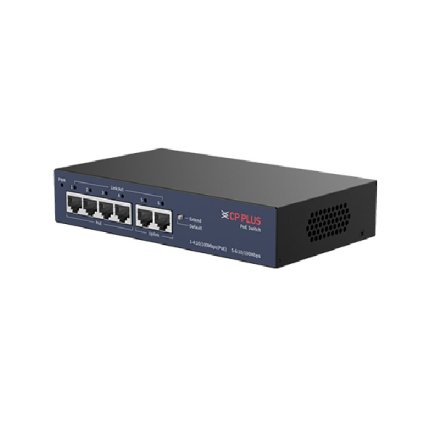

4 Port PoE Network Switch With 2 Uplink Ports And 48W Power

Model CP-UNW-HPU4H2-48
Switch Type 6 Ports Switch With 4 PoE Ports And 2 Uplink Ports
Network Standard IEEE 802.3 IEEE 802.3u IEEE 802.3x
Switching Capacity 1.2 Gbps
Packet Forwarding Rate 0.893 Mbps
MAC Address List 2K
Packet Buffer 768 Kbit
DIP Switch Long Distance PoE Transmission Up To 250 Meter For Ports 1 To 4 With Negotiation Speed Reduced To 10 Mbps
ESD Protection Air Discharge 8KV Contact Discharge 6KV
Lightning Protection Common Mode 6KV
PoE Pin Assignment 1/2 Plus 3/6 Minus
Long Distance PoE Transmission Support
Function Slots Description Port 1 To 4 4 × RJ-45 10/100 Mbps PoE Port 5 To 6 2 × RJ-45 10/100 Mbps Uplink
PoE Power Port 1 To 4 ≤30 W Total ≤48 W
Power Supply Built In Power Supply 200 To 240 VAC 50/60 Hz Maximum 1 A
Power Consumption Idling 0.3 W Full Load 48 W
Jumbo Frame 2048 Byte
Operating Temperature Minus 10 Degree Celsius To Plus 45 Degree Celsius
Operating Humidity 10 Percent To 90 Percent RH Non Condensing
Storage Temperature Minus 10 Degree Celsius To Plus 45 Degree Celsius
Storage Humidity 5 Percent To 95 Percent RH Non Condensing
Casing Sheet Metal
Dimensions 180mm × 112mm × 44mm
Weight 420 g
