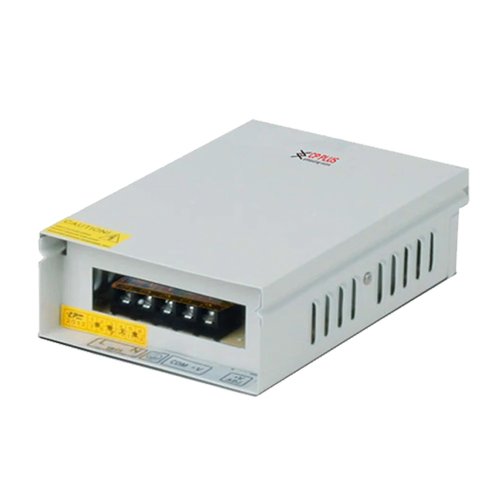

CP Plus 6 Channel CCTV Power Supply

Top CP Plus 6 Channel CCTV Power Supply Dealers in Delhi, India

When a security setup needs more juice than a basic 4-port box but doesn't quite justify an 8-port unit, a 6-line supply box fills the gap. Running 5 or 6 cameras on undersized adapters often leads to video lines cutting out or IR night vision flickering as soon as the sun goes down. At Mahajan Enterprises, we, as the Top CP Plus 6 Channel CCTV Power Supply Dealers in Delhi, India, supply the best products for setups like duplex homes, corner shops, and floor offices. It takes your standard 230V mains current and converts it into steady 12V DC power across six separate terminal channels. The internal board features short-circuit cutoffs and heat dissipation vents, keeping your DVR feeds stable without risking damage to camera image sensors.

Wholesale 6 Channel CCTV Power Supply Suppliers in Delhi

Wiring contractors, security installers, and store managers handling mid-scale setups need steady access to inventory and fair trade pricing. Sourcing through Wholesale 6 Channel CCTV Power Supply Suppliers in Delhi gives trade buyers direct carton lots along with BNC connectors, DC pins, and copper wire bundles.

  • Ordering in full box quantities keeps unit costs low, helping you give clean, competitive estimates to your customers.
  • Clear screw terminal layouts let technicians connect up to six camera power lines without making messy wire joints.
  • Carrying spare SMPS units in your service vehicle means your technicians can replace faulty power boxes during maintenance visits without extra trips.

6 Channel CCTV Power Supply Authorised Dealers in Delhi

Power boxes deal directly with raw wall current, so using cheap local supplies often causes blown fuses, video line interference, or early hardware failure. Sourcing through 6 Channel CCTV Power Supply Authorised Dealers in Delhi ensures you get original factory-sealed units built with heavy-duty transformers and fire-retardant enclosures.

  • Original factory stock comes with standard manufacturer warranty cover, making it easy to swap units if an internal board acts up.
  • Regulated output keeps video lines clear of rolling bars and static noise on your DVR monitor.
  • Built-in surge protection handles sudden voltage spikes caused by power cuts or rainy weather.

6 Channel CCTV Power Supply Distributors in Delhi

If an installation crew is working on a 6-camera setup and finds a dead power box, waiting days for stock delivery stops the whole handover. Established 6 Channel CCTV Power Supply Distributors in Delhi hold physical inventory in local godowns for quick pickup. Having stock nearby lets technicians collect extra units the same morning, finish their wiring runs, and hand over a tested security setup right on time.

6 Channel CCTV Power Supply Retailers in Delhi

If you want to check the box casing, test the terminal screws, or verify output current before buying, visiting 6 Channel CCTV Power Supply Retailers in Delhi is the most practical step. At Mahajan Enterprises, our counter staff can show you how to wire 3+1 coaxial cables into the output slots, explain line loss over longer wire runs, and help you pick the right power unit for your space.

  • Counter checks allow you to inspect terminal build and ventilation slots before making a purchase.
  • Store staff can explain voltage drop across long wiring distances so distant cameras do not lose power at night.
  • Buying straight off the counter means you can take the unit to your site, wire it up, and turn on your cameras that afternoon.

Our CP Plus 6 Channel CCTV Power Supply Range

CP Plus 12V 5A SMPS Metal Power Supply With Protection

Model CP-DPS-MD50P-12D
Product Type Metal Case SMPS Power Supply Premium Series
Input Voltage 190V To 250V AC
Input Frequency Range 47Hz To 63Hz
Input Current 3.0A At 230V AC
Power Cord 3 Pin L N And Earth
Standby Power Consumption Less Than Or Equal To 3.0W
Inrush Current 40A At 230V AC
Efficiency 80 Percent
Output Voltage 12V DC
Output Current 5A
Output Current Range 0 To 5A
Rated Power 60W
Ripple And Noise Less Than Or Equal To 200mV
Line Regulation 2 Percent
Load Regulation 3 Percent
Power On Indicator Supported
Cable Compensation Supported Trimmer Pot
Output Ports Single Port
Over Voltage Protection Supported
Over Current Protection Supported
Short Circuit Protection Supported
Insulation Resistance 100 Mohm At 500V DC
Operating Temperature Minus 10 Degree Celsius To Plus 40 Degree Celsius
Operating Humidity 20 Percent To 90 Percent RH Non Condensing
Storage Temperature Minus 20 Degree Celsius To Plus 85 Degree Celsius
Storage Humidity 10 Percent To 95 Percent RH
Wall Mount Option Supported
Dimensions 156 x 103 x 47 mm

CP Plus Premium Series 12V DC 10A SMPS Power Supply

Model CP-DPS-MD100P-12D
Product Type Metal Case SMPS Power Supply Premium Series
Input Voltage 190V To 250V AC
Input Frequency Range 47Hz To 63Hz
Input Current 3.0A At 230V AC
Power Cord 3 Pin L N And Earth
Standby Power Consumption Less Than Or Equal To 3.0W
Inrush Current 40A At 230V AC
Efficiency 80 Percent
Output Voltage 12V DC
Output Current 10A
Output Current Range 0 To 10A
Rated Power 120W
Ripple And Noise Less Than Or Equal To 200mV
Line Regulation 3 Percent
Load Regulation 5 Percent
Power On Indicator Supported
Cable Compensation Supported Trimmer Pot
Output Ports Single Port
Over Voltage Protection Supported
Over Current Protection Supported
Short Circuit Protection Supported
Insulation Resistance 100 Mohm At 500V DC
Operating Temperature Minus 10 Degree Celsius To Plus 40 Degree Celsius
Operating Humidity 20 Percent To 90 Percent RH Non Condensing
Storage Temperature Minus 20 Degree Celsius To Plus 85 Degree Celsius
Storage Humidity 10 Percent To 95 Percent RH
Wall Mount Option Supported
Dimensions 187 x 103 x 52 mm

CP Plus 12V 20A CCTV Metal Power Supply 240W Premium Series

Model CP-DPS-MD200P-12D
Product Type Metal Case Power Supply Premium Series
Input Voltage 190 To 250V AC
Output Voltage 12V DC
Output Current Range 0 To 20A
Rated Power 240W
Ripple And Noise 100mVp-p Maximum
Voltage Adjustment Range 11.4V To 13.2V
Line Regulation Plus Or Minus 1 Percent
Voltage Tolerance Plus Or Minus 2 Percent
Setup Rise Time 600ms 30ms At Full Load
Hold Up Time 13ms At Full Load
Load Regulation Plus Or Minus 5 Percent
Temperature Coefficient Plus Or Minus 0.03 Percent Per Degree Celsius
Frequency Range 47 To 63Hz
Efficiency 84 Percent
Input AC Current 5A At 115V AC 3A At 230V AC
Inrush Current 20A At 115V AC 40A At 230V AC
Leakage Current Less Than 2mA At 240V AC
Over Load Protection 110 To 200 Percent Rated Output Power Shut Down Output And Re Power
Isolation Resistance 100 Mohm At 500V DC
Working Humidity 20 Percent To 90 Percent RH Non Condensing
Vibration Resistance 10 To 500Hz 3G Along X Y Z Axis
Operating Temperature Minus 20 Degree Celsius To Plus 40 Degree Celsius
Storage Temperature Minus 20 Degree Celsius To Plus 85 Degree Celsius
Storage Humidity 10 Percent To 95 Percent RH
Withstand Voltage Input To Output 1.5KV AC Input To Ground 1.5KV AC Output To Ground 0.5KV AC
Dimensions 196 x 114 x 55 mm

CP Plus 24W 12V 2A Two Pin Power Adapter With Stable Output

Model CP-YPS-PA24B-12DT
Product Type 12V 2 Amp Two Pin Power Adapter
Output Voltage 12V DC (11.4V to 12.6V)
Rated Output Current 2A
Minimum Load 0.1A
Output Power 24W
Input Voltage Range 110V to 265V AC
Rated Input Voltage 140V to 240V AC
Rated Frequency 50Hz to 60Hz
Frequency Variation 47Hz to 63Hz
Input Current 0.75A Maximum
Line Regulation ±5%
Load Regulation ±5%
Ripple And Noise 250mVp-p Under Normal Voltage And Rated Load
Turn On Delay Time Maximum 3 Seconds At 115V AC Input
Rise Time Maximum 100 ms At 115V AC Input
Hold Up Time Minimum 8 ms At 115V AC Input
Fall Time 50 ms At Maximum Load
Surge Immunity 2kV Line To Neutral
Hi Pot Test 2kV At 10mA
No Load Power Consumption Less Than 0.3W
Over Current Protection 2.2A Minimum At 230V AC
Efficiency Minimum 75% Average Efficiency At 25% To 100% Load
Overshoot Maximum 10% During Power On Or Off
Operating Temperature 0°C To 40°C
Storage Temperature -40°C To 70°C
Certifications ISO 9001:2015, ISO 20000-1:2018, ISO 14001:2015, ISO 45001:2018, ISO 50001:2018, CE, FCC, RoHS, BIS

CP Plus 12V 3A 36W Three Pin Power Adapter For CCTV Cameras

Model CP-YPS-PA36B-12DN
Product Type 12V 3 Amp 3 Pin Power Adapter
Output Voltage 12V DC (11.4V to 12.6V)
Output Current 3A Rated Load
Minimum Load 0.1A
Output Power 36W
Input Voltage Range 100V to 285V AC
Rated Input Voltage 140V to 240V AC
Rated Frequency 50/60Hz (47Hz to 63Hz)
Input Current 0.8A Maximum at Full Load
Line Regulation ±5%
Load Regulation ±5%
Turn On Delay Time 3 Seconds Maximum
Hold Up Time 10 ms Minimum
Fall Time 50 ms at Maximum Load
Surge Immunity 2 kV L N
Hi Pot Test 3 kV at 10 mA
No Load Power Consumption Less Than 0.3W
Over Current Protection 3.6A Minimum at 230V AC
Overshoot 10% Maximum During Power On Or Off
Operating Temperature 0°C to 40°C
Storage Temperature -40°C to 85°C
Certificates ISO 9001:2015, ISO 20000-1:2018, ISO 14001:2015, ISO 45001:2018, ISO 50001:2018, CE, FCC, RoHS, BIS
