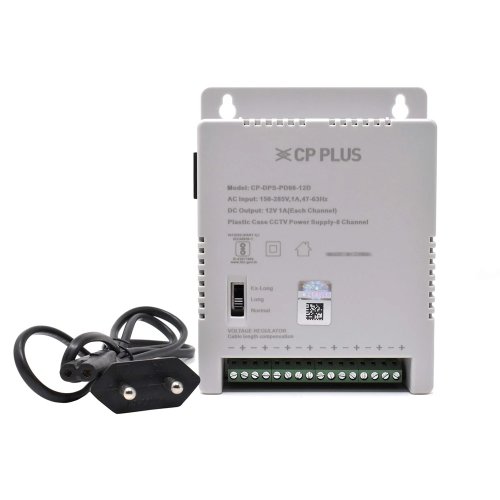

CP Plus 8 Channel CCTV Power Supply

Top CP Plus 8 Channel CCTV Power Supply Dealers in Delhi, India

When an 8-camera setup starts dropping video or flickering at night, the issue is usually weak current from a poor power box. For medium homes, shops, and office floors, running your cameras off a single multi-channel SMPS box keeps everything working without random drops. At Mahajan Enterprises, we, as Top CP Plus 8 Channel CCTV Power Supply Dealers in Delhi, India, regularly supply the best to technicians and owners who need steady 12V DC power across eight camera lines. The unit steps down standard wall socket power and sends regulated voltage to eight terminal screws. Built-in safety features guard against power spikes, overheating, and short circuits, keeping camera sensor boards safe through daily use and voltage fluctuations.

Wholesale 8 Channel CCTV Power Supply Suppliers in Delhi

Technicians, electrical stockists and installation crews that are working on larger jobs need steady stock and clear trade pricing. Deciding to source through Wholesale 8 Channel CCTV Power Supply Suppliers in Delhi gives trade buyers direct access to full box quantities along with BNC connectors, DC pins, and wire rolls.

  • Buying full carton quantities keeps unit costs low so your project quotes stay reasonable for clients.
  • Labeled screw terminals let technicians connect eight camera lines cleanly without making messy tape joints.
  • Keeping extra power boxes in your field kit lets your crew fix dead power points on repair visits without losing time.

8 Channel CCTV Power Supply Authorised Dealers in Delhi

Power supply units handle raw wall power directly, so using cheap unbranded boxes often leads to blown fuses, video line noise, or short hardware life. When you buy your supply through 8 Channel CCTV Power Supply Authorised Dealers in Delhi, you can be assured that you are getting genuine factory boxes that are built with heavy-duty transformers and solid metal cooling.

  • Original factory stock comes with standard warranty cover, making it simple to get replacements if an internal board fails.
  • Regulated output stops line noise and rolling bars on your screen, keeping camera feeds clear.
  • Built-in surge protection handles sudden power spikes caused by local transformer cuts or monsoon storms.

8 Channel CCTV Power Supply Distributors in Delhi

If an installation team is setting up eight cameras on a job and finds a dead power box, waiting days for stock delivery stops the whole project. Established 8 Channel CCTV Power Supply Distributors in Delhi keep physical stock in local godowns for quick pickup. Having stock nearby lets technicians collect fresh units the same morning, finish their wiring runs, and hand over a working setup on time.

8 Channel CCTV Power Supply Retailers in Delhi

If you want to check the box build, inspect the screw terminals, or test output voltage before buying, visiting 8 Channel CCTV Power Supply Retailers in Delhi is the easiest way forward. At Mahajan Enterprises, our staff can show you how to wire coaxial power leads into the terminal slots, explain wire length settings for longer runs, and help you pick the right power supply for your setup.

  • Store counter checks let you inspect box ventilation and screw terminal quality before you buy.
  • Store staff can explain voltage drop across long wiring runs so you do not lose video on far-corner cameras.
  • Buying right off the counter means you can take the power box straight to your site, wire it up, and turn on your cameras that afternoon.

Our CP Plus 8 Channel CCTV Power Supply Range

CP Plus 12V 5A SMPS Metal Power Supply With Protection

Model CP-DPS-MD50P-12D
Product Type Metal Case SMPS Power Supply Premium Series
Input Voltage 190V To 250V AC
Input Frequency Range 47Hz To 63Hz
Input Current 3.0A At 230V AC
Power Cord 3 Pin L N And Earth
Standby Power Consumption Less Than Or Equal To 3.0W
Inrush Current 40A At 230V AC
Efficiency 80 Percent
Output Voltage 12V DC
Output Current 5A
Output Current Range 0 To 5A
Rated Power 60W
Ripple And Noise Less Than Or Equal To 200mV
Line Regulation 2 Percent
Load Regulation 3 Percent
Power On Indicator Supported
Cable Compensation Supported Trimmer Pot
Output Ports Single Port
Over Voltage Protection Supported
Over Current Protection Supported
Short Circuit Protection Supported
Insulation Resistance 100 Mohm At 500V DC
Operating Temperature Minus 10 Degree Celsius To Plus 40 Degree Celsius
Operating Humidity 20 Percent To 90 Percent RH Non Condensing
Storage Temperature Minus 20 Degree Celsius To Plus 85 Degree Celsius
Storage Humidity 10 Percent To 95 Percent RH
Wall Mount Option Supported
Dimensions 156 x 103 x 47 mm

CP Plus Premium Series 12V DC 10A SMPS Power Supply

Model CP-DPS-MD100P-12D
Product Type Metal Case SMPS Power Supply Premium Series
Input Voltage 190V To 250V AC
Input Frequency Range 47Hz To 63Hz
Input Current 3.0A At 230V AC
Power Cord 3 Pin L N And Earth
Standby Power Consumption Less Than Or Equal To 3.0W
Inrush Current 40A At 230V AC
Efficiency 80 Percent
Output Voltage 12V DC
Output Current 10A
Output Current Range 0 To 10A
Rated Power 120W
Ripple And Noise Less Than Or Equal To 200mV
Line Regulation 3 Percent
Load Regulation 5 Percent
Power On Indicator Supported
Cable Compensation Supported Trimmer Pot
Output Ports Single Port
Over Voltage Protection Supported
Over Current Protection Supported
Short Circuit Protection Supported
Insulation Resistance 100 Mohm At 500V DC
Operating Temperature Minus 10 Degree Celsius To Plus 40 Degree Celsius
Operating Humidity 20 Percent To 90 Percent RH Non Condensing
Storage Temperature Minus 20 Degree Celsius To Plus 85 Degree Celsius
Storage Humidity 10 Percent To 95 Percent RH
Wall Mount Option Supported
Dimensions 187 x 103 x 52 mm

CP Plus 12V 20A CCTV Metal Power Supply 240W Premium Series

Model CP-DPS-MD200P-12D
Product Type Metal Case Power Supply Premium Series
Input Voltage 190 To 250V AC
Output Voltage 12V DC
Output Current Range 0 To 20A
Rated Power 240W
Ripple And Noise 100mVp-p Maximum
Voltage Adjustment Range 11.4V To 13.2V
Line Regulation Plus Or Minus 1 Percent
Voltage Tolerance Plus Or Minus 2 Percent
Setup Rise Time 600ms 30ms At Full Load
Hold Up Time 13ms At Full Load
Load Regulation Plus Or Minus 5 Percent
Temperature Coefficient Plus Or Minus 0.03 Percent Per Degree Celsius
Frequency Range 47 To 63Hz
Efficiency 84 Percent
Input AC Current 5A At 115V AC 3A At 230V AC
Inrush Current 20A At 115V AC 40A At 230V AC
Leakage Current Less Than 2mA At 240V AC
Over Load Protection 110 To 200 Percent Rated Output Power Shut Down Output And Re Power
Isolation Resistance 100 Mohm At 500V DC
Working Humidity 20 Percent To 90 Percent RH Non Condensing
Vibration Resistance 10 To 500Hz 3G Along X Y Z Axis
Operating Temperature Minus 20 Degree Celsius To Plus 40 Degree Celsius
Storage Temperature Minus 20 Degree Celsius To Plus 85 Degree Celsius
Storage Humidity 10 Percent To 95 Percent RH
Withstand Voltage Input To Output 1.5KV AC Input To Ground 1.5KV AC Output To Ground 0.5KV AC
Dimensions 196 x 114 x 55 mm

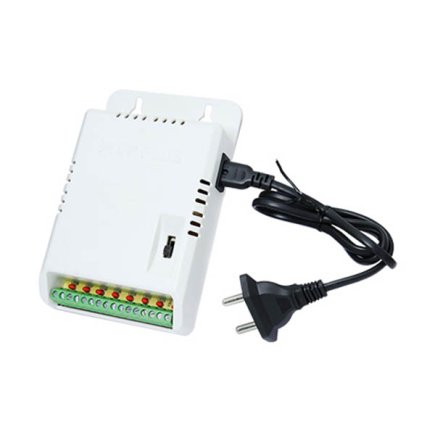

CP Plus 8 Channel 12V DC Eco Power Supply With Protection

Model CP-LPS-PD08-12D
Product Type 8 Channel Eco Power Supply
Input Voltage 150V AC To 240V AC
Output Connector Terminal Block Type
Output Voltage 12V DC
Output Current 0 To 1A Each Channel
Voltage Adjustment Range 12V DC To 15V DC
Ripple And Noise Less Than 200mV
Rated Power 48W
Voltage Tolerance 10 Percent
Line Regulation Less Than 3 Percent At 150V AC To 240V AC
Power Supply Type SMPS Switch Mode Power Supply
Load Regulation Less Than 10 Percent At 150V AC To 240V AC
Setup Rise Time 30ms Maximum At Rated Load
Hold Up Time 30ms Maximum At Full Load And 230V AC Input
Temperature Coefficient Maximum 75 Degree Celsius
Frequency Range 50Hz To 60Hz
Efficiency 70 Percent
AC Current 1.2A Maximum At Full Load
Guard Time Maximum 2 Seconds At 150V To 240V AC Input
Override Protection Supported
Inrush Current 50A Maximum At 240V AC Input
Leakage Current 0.008A Maximum
Over Voltage Protection Supported
Short Circuit Protection Supported With Auto Recovery
Over Load Protection Supported
Over Current Protection Supported
Withstand Voltage Input 100 To 240V AC Output 12 To 15V DC
Isolation Resistance 50 Mohm Minimum At 500V DC Test Voltage
Operating Temperature Minus 10 Degree Celsius To Plus 45 Degree Celsius
Storage Temperature Minus 40 Degree Celsius To Plus 70 Degree Celsius
Operating Humidity 5 Percent To 95 Percent
Body Material Plastic ABS
Dimensions 154.7 x 97.38 x 32.90 mm
Weight 233.1 g

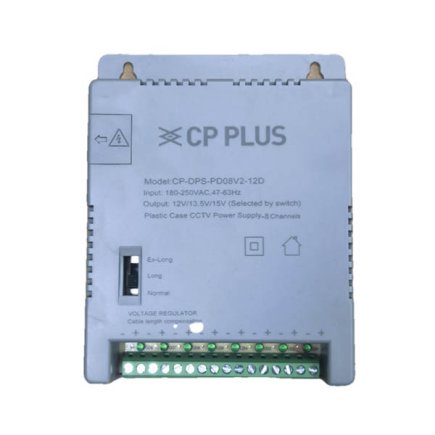

CP Plus 8 Channel 12V 5A CCTV Power Distribution Supply Box

Model CP-DPS-PD08V2-12D
Product Type 8 Channel Power Supply
Input Voltage 200 To 240V AC
Output Voltage 12V DC
Output Current Range 0 To 5A
Rated Power 60W
Ripple And Noise 120mVp-p Maximum
Voltage Adjustment Range 11.4V To 12.6V
Line Regulation Plus Or Minus 1 Percent
Voltage Tolerance Not Applicable
Setup Rise Time 2500 ms 15 ms At Full Load
Hold Up Time 20 ms At Full Load
Load Regulation Plus Or Minus 5 Percent
Temperature Coefficient Plus Or Minus 0.03 Percent Per Degree Celsius
Frequency Range 47 To 63Hz
Efficiency 86 Percent
Input AC Current 1A At 220V AC
Inrush Current 40A Cold Start At 220V AC
Leakage Current Less Than 2mA At 240V AC
Over Load Protection 110 To 200 Percent Rated Output Power Auto Recovery
Isolation Resistance 100 Mohm At 500V DC
Working Humidity 20 Percent To 90 Percent RH Non Condensing
Vibration Resistance 10 To 500Hz 3G Along X Y Z Axis
Operating Temperature Minus 20 Degree Celsius To Plus 45 Degree Celsius
Storage Temperature Minus 20 Degree Celsius To Plus 85 Degree Celsius
Withstand Voltage Input To Output 1.5KV AC Input To Ground 1.5KV AC Output To Ground 0.5KV AC
Dimensions 144 x 109.5 x 33 mm

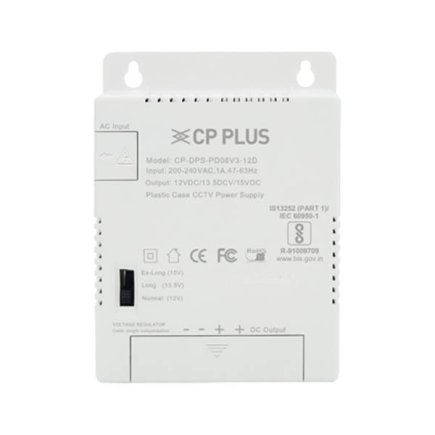

CP Plus 8 Channel 12V 60W CCTV Power Supply With Protection

Model CP-DPS-PD08V3-12D
Product Type 8 Channel Power Supply
Input Voltage 200 To 240V AC
Input Frequency 47 To 63Hz
Input Current 1A At 230V AC
Power Cord 2 Pin L And N
Standby Power Consumption Less Than Or Equal To 0.5W
Inrush Current Less Than Or Equal To 40A At 230V AC
Efficiency 85 Percent
Output Voltage 12V DC Normal Mode
Output Current 0 To 5A
Rated Power 60W
Ripple And Noise Less Than Or Equal To 240mV
Line Regulation 2 Percent
Load Regulation 3 Percent
Power On Indicator Supported
Cable Compensation Supported Three Modes Normal Long Extra Long
Output Ports 2 Output Terminals
Short Circuit Protection Supported
Dielectric Strength 3.0KV
Insulation Resistance 100 Mohm At 500V DC
Surge Immunity 1.0KV
Operating Temperature Minus 10 Degree Celsius To Plus 45 Degree Celsius
Operating Humidity 20 Percent To 90 Percent RH Non Condensing
Storage Temperature Minus 10 Degree Celsius To Plus 45 Degree Celsius
Storage Humidity 10 Percent To 95 Percent RH
Dimensions 141.5 x 102.6 x 33.2 mm
Weight 0.234 kg Without Power Cord And Packing Box

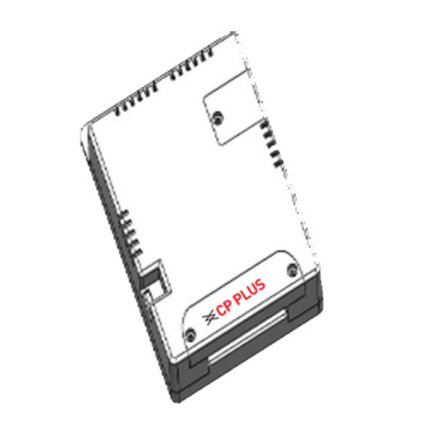

CP Plus 8 Channel 12V 5A CCTV Power Supply Box 72W Metal Case

Model CP-CPS-PD08-12D
Product Type 8 Channel Power Supply
Input AC Voltage Range 170V To 250V AC
Rated Input Voltage 220 To 240V AC
Input AC Current 2A Typical At 90V AC
Rated Power 72W
Inrush Current 40A Cold Start At 230V AC
Leakage Current Less Than 2mA At 230V AC
Efficiency Greater Than Or Equal To 85 Percent
Frequency 50Hz
Output DC No Load Voltage 12 To 12.5V 14 To 14.5V 15 To 15.5V
Output DC On Load Voltage 11.2 To 12.6V 13.2 To 14.2V 14.2 To 15.2V
Output DC Current 0 To 5A 0 To 4.25A 0 To 4A
Maximum Output Power 60W
Ripple And Noise Less Than 240mV Less Than 270mV Less Than 300mV
Load Efficiency 85 Percent 86 Percent 86 Percent
Start Up Time Less Than 2 Seconds At 230V AC
Line Regulation Plus Or Minus 2 Percent
Load Regulation Plus Or Minus 2 Percent
Lead Cable Compensation Less Than 3 Percent Of DC No Load Voltage
Over Voltage Protection Supported
Over Current Protection 110 Percent To 150 Percent Of Rated Current
Short Circuit Protection Auto Restart Function
Over Temperature Protection Hiccup Mode With Automatic Recovery
Safety Standard IEC 60950 1 2005 IS 13252 Part 1 2010
Withstand Voltage Input To Output 3KV AC Input To Ground 1.5KV AC Output To Ground 1.5KV AC
Isolation Resistance 100 Mohm At 500V DC
Protection Class Class II
IP Rating IP20
EMC Immunity Surge Protection ESD Protection IEC 61000 Standards
Working Temperature 0 Degree Celsius To Plus 40 Degree Celsius
Working Humidity 10 Percent To 95 Percent RH
Case Temperature Less Than Or Equal To 70 Degree Celsius
Body Material PC FR4
Dimensions 165 x 115 x 35 mm
Weight 245 g

CP Plus 24W 12V 2A Two Pin Power Adapter With Stable Output

Model CP-YPS-PA24B-12DT
Product Type 12V 2 Amp Two Pin Power Adapter
Output Voltage 12V DC (11.4V to 12.6V)
Rated Output Current 2A
Minimum Load 0.1A
Output Power 24W
Input Voltage Range 110V to 265V AC
Rated Input Voltage 140V to 240V AC
Rated Frequency 50Hz to 60Hz
Frequency Variation 47Hz to 63Hz
Input Current 0.75A Maximum
Line Regulation ±5%
Load Regulation ±5%
Ripple And Noise 250mVp-p Under Normal Voltage And Rated Load
Turn On Delay Time Maximum 3 Seconds At 115V AC Input
Rise Time Maximum 100 ms At 115V AC Input
Hold Up Time Minimum 8 ms At 115V AC Input
Fall Time 50 ms At Maximum Load
Surge Immunity 2kV Line To Neutral
Hi Pot Test 2kV At 10mA
No Load Power Consumption Less Than 0.3W
Over Current Protection 2.2A Minimum At 230V AC
Efficiency Minimum 75% Average Efficiency At 25% To 100% Load
Overshoot Maximum 10% During Power On Or Off
Operating Temperature 0°C To 40°C
Storage Temperature -40°C To 70°C
Certifications ISO 9001:2015, ISO 20000-1:2018, ISO 14001:2015, ISO 45001:2018, ISO 50001:2018, CE, FCC, RoHS, BIS

CP Plus 12V 3A 36W Three Pin Power Adapter For CCTV Cameras

Model CP-YPS-PA36B-12DN
Product Type 12V 3 Amp 3 Pin Power Adapter
Output Voltage 12V DC (11.4V to 12.6V)
Output Current 3A Rated Load
Minimum Load 0.1A
Output Power 36W
Input Voltage Range 100V to 285V AC
Rated Input Voltage 140V to 240V AC
Rated Frequency 50/60Hz (47Hz to 63Hz)
Input Current 0.8A Maximum at Full Load
Line Regulation ±5%
Load Regulation ±5%
Turn On Delay Time 3 Seconds Maximum
Hold Up Time 10 ms Minimum
Fall Time 50 ms at Maximum Load
Surge Immunity 2 kV L N
Hi Pot Test 3 kV at 10 mA
No Load Power Consumption Less Than 0.3W
Over Current Protection 3.6A Minimum at 230V AC
Overshoot 10% Maximum During Power On Or Off
Operating Temperature 0°C to 40°C
Storage Temperature -40°C to 85°C
Certificates ISO 9001:2015, ISO 20000-1:2018, ISO 14001:2015, ISO 45001:2018, ISO 50001:2018, CE, FCC, RoHS, BIS
Related Searches
Quick Enquiry
